General

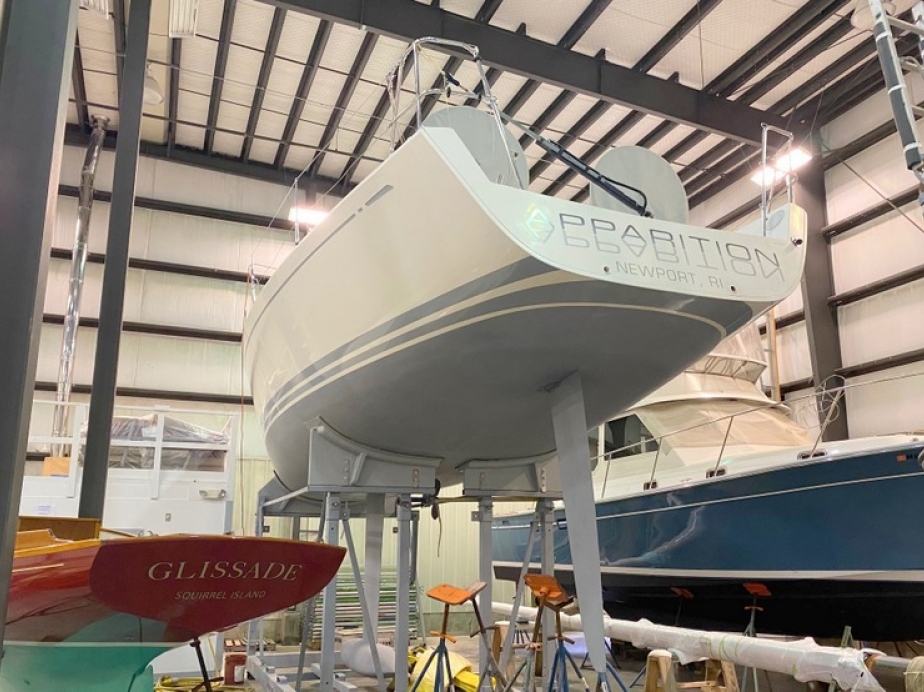

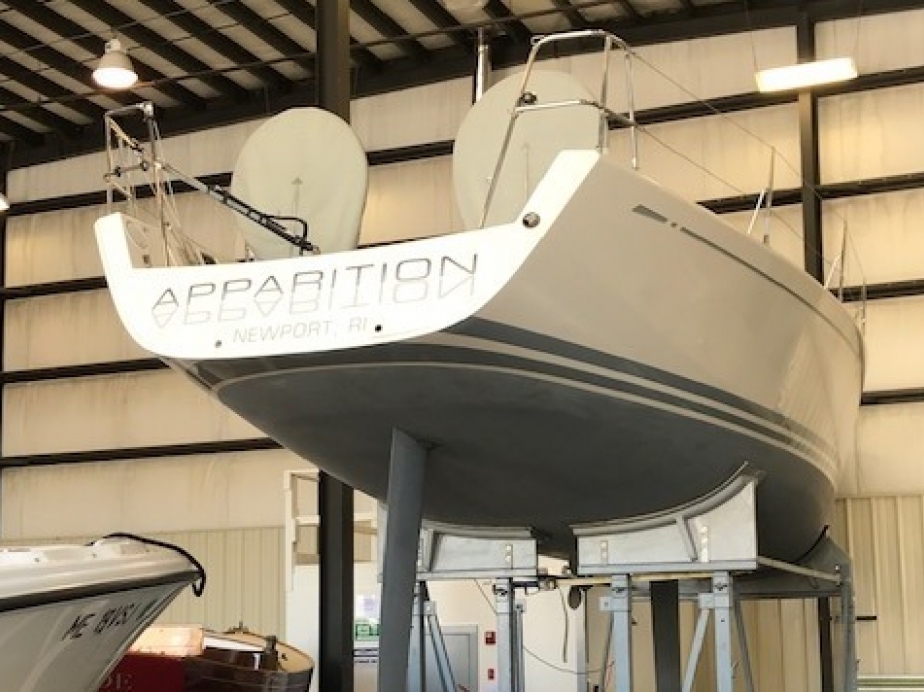

Hull, Deck & Superstructure Construction:

• White gelcoat with gray cove and gray stripes.
• Epoxy coated bottom barrier.
• Vivid antifouling paint (color gray) sprayed on bottom and race finish wetsanded.
• Infusion molded E-glass/vinylester laminate with carbon reinforcements in selected areas.
• Closed cell foam cored hull, with higher density foam in bottom and slamming areas.
• Water tight bulkhead at bow.
• Bottom stiffeners reinforced with unidirectional carbon and multi-axial glassfibre.
• GRP engine beds.
• Stainless Steel chainplates.

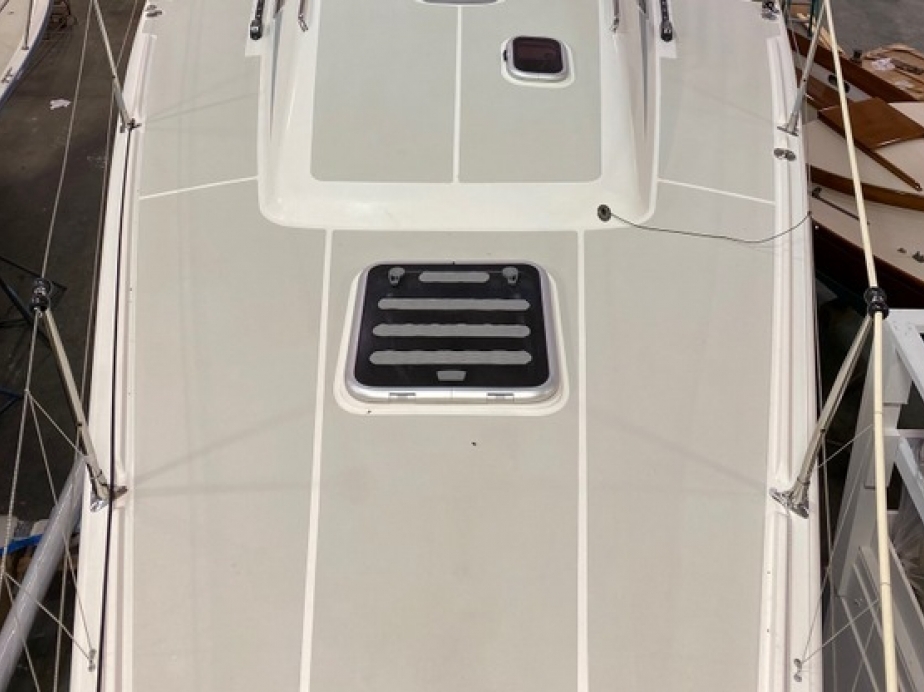

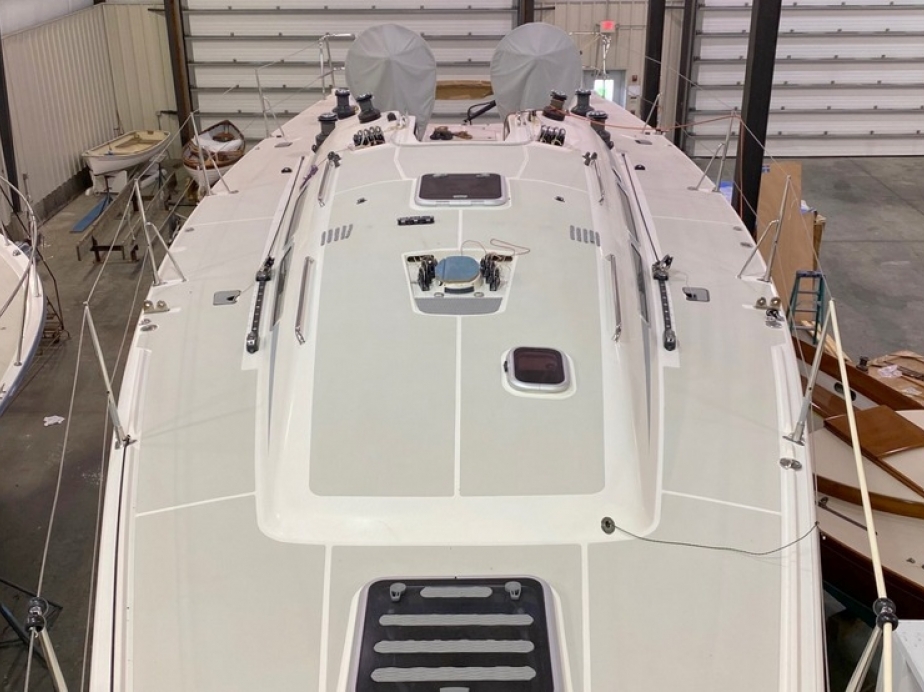

• Infusion molded E-glass/vinylester laminate sandwich deck, with glass skins and closed cell foam core.
• White gelcoat with molded in light grey non-skid.
• The main companionway sliding hatch garage flush with coach roof.
• Teak deck on cockpit seats.

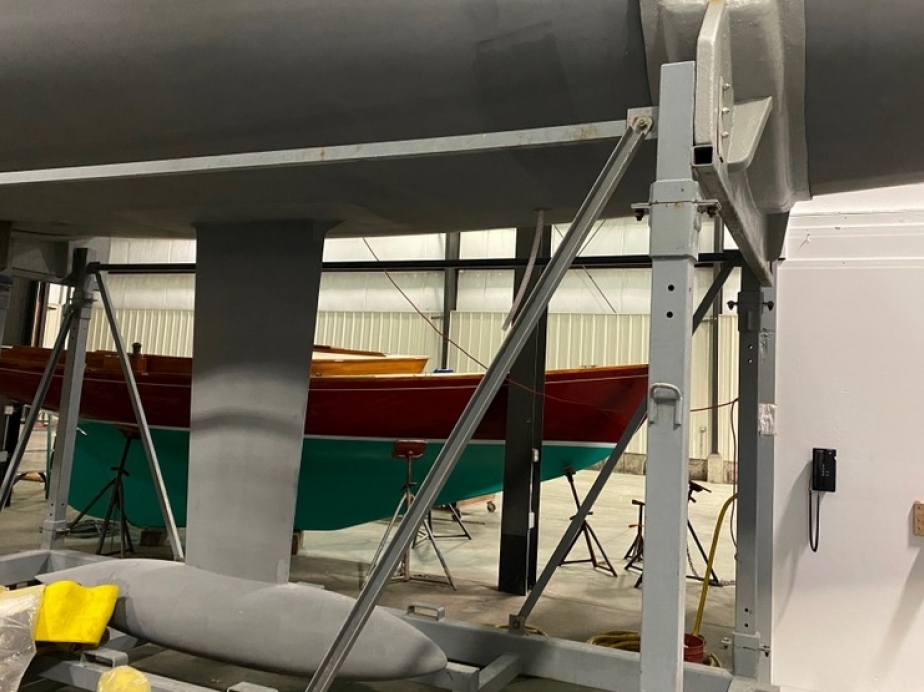

Keel & Rudder:

• Faired steel T-Keel with lead bulb.
• GRP Rudder w/carbon stock.

Rigging

• Hall spars fractional rigged carbon fiber double spreader mast (re-awl gripped winter 2018-2019 with black color for longevity above deck with original clear coat on carbon below decks).
• Black painted aluminum boom and aluminum spreaders.

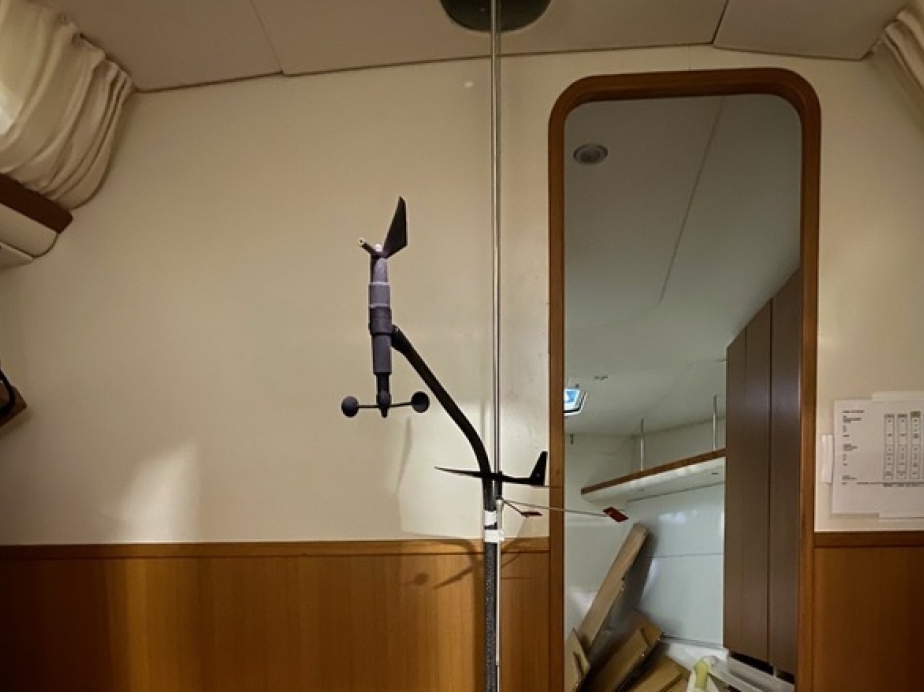

• Windex with light.
• 2 Reckman RS 3000-S2 Carbon headsail furlers recessed under deck (one functional in 2019 sailing season and one for spare parts)
• German style, continuous mainsheet.
• 2 spinnaker halyards at masthead and hounds.
• Navtec rod rigging with discontinuous shrouds, Series 500 turnbuckles.
• Combined mainsail luff groove and track/car system.
• Hall Quick vang.
• Carbon retractable bowsprit in waterproof garage.
• Holmatro backstay adjuster with 2 panels.
• Harken Carbo foil headstay system.
• Halyards and reef lines are led below deck to the cockpit.
• Hydraulic mast jack – owner installed on board

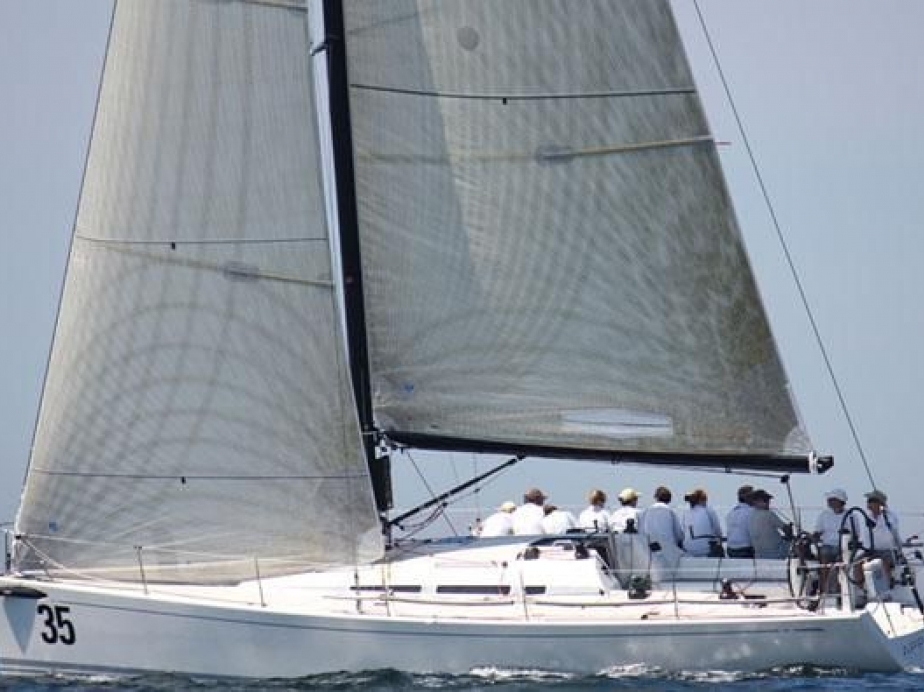

Sails

Sails – 2012 and earlier - Sail, Description:

• Light/Medium Jib, LM-1 3DL - with #7 luff tape for roller furler - 2012
• Medium/Heavy Jib, Mi-1 3DL – with #7 luff tape for roller furler - 2012
• A1 Spinnaker -2012
• A2 Spinnaker - 2012
• A6 Spinnaker (used twice) – 2008
• A5/Code Zero (with torsion cable) – 2008
• A3 Spinnaker – OD - 2007
• Spinnaker Staysail (with furler) - 2007
• Dacron Main – for cruising – with partially installed Dutchman System - 2007
• Dacron Jib – for cruising - 2007
• Storm Trysail and Storm Jib

Sails – 2013 - Sail, Description:

• Main, 3DL MN-3
• Light/Medium Jib, LM-1 3DL
• Medium Jib, Mi-1 3Di
• A2, Code 2A-3

Sails – 2014 - Sail, Description:

• Light Jib, CSD L-2
• Heavy Jib, CSD Hi-3 3Di - #7 luff tape (for tuff luff change to #6)
• A1, Airx 500
• A4, Airx 700
• #4 Jib, CSD HWJ4i
• A3, NDPO (with torsion cable and K-3 Karver top down furler) – not for OD racing

Sails - 2015 - Sail, Description:

• Main, CSD MNi-1 Raw
• A2, Airx 600
• Med Jib, CSD Mi-1 3Di

Sails - 2016 - Sail, Description.

• Light Jib, CSD Li-2 3Di Raw
• A1, Airx 500 -.
• A4, Airx 700/900.

Accommodations

• 3 double cabins and saloon
• Removable double Vee-berth with stowage under. Hanging locker and stowage. Black water tank under berth.
• Head: White GRP interior module with washbasin, Mirrored locker outboard, Fresh water tap, shower. Jabsco Marine toilet w/Sea water for toilet flushing. single lever faucets. Y-valve in head for overboard discharge or holding tank selection.
  Holding tank emptied by hand pump or deck suction. Grey/Blackwater holding tanks: Total capacity of 54.88 litres (14.5 US gal).
• Saloon: Folding leaf table in teak which hold the mast jack inside (custom installed), Settee backrests lift up and convert into Pullman berths, Water & fuel tanks below settees.
• Navigation Area: Forward facing chart table, Movable teak instrument panel outboard, Chart stowage under table top, Locker below.
• Pressurized hot and cold water.
• Fresh water: Total capacity of 317.97 litres (84 US gal). In polyethylene tanks.

Galley:

• Gimbaled two burner alcohol (non-pressurized) stove with oven (installed).
• Alternate Microwave replacement with wooden box for cruising (not installed)
• Stainless steel double sinks with fresh water tap.
• Ample stowage for galley equipment & dry goods.
• Top loading refrigerator manual pump for draining. Battery driven
• Garbage bin.
• Seawater foot pump in galley.
• Fresh water foot pump in galley.

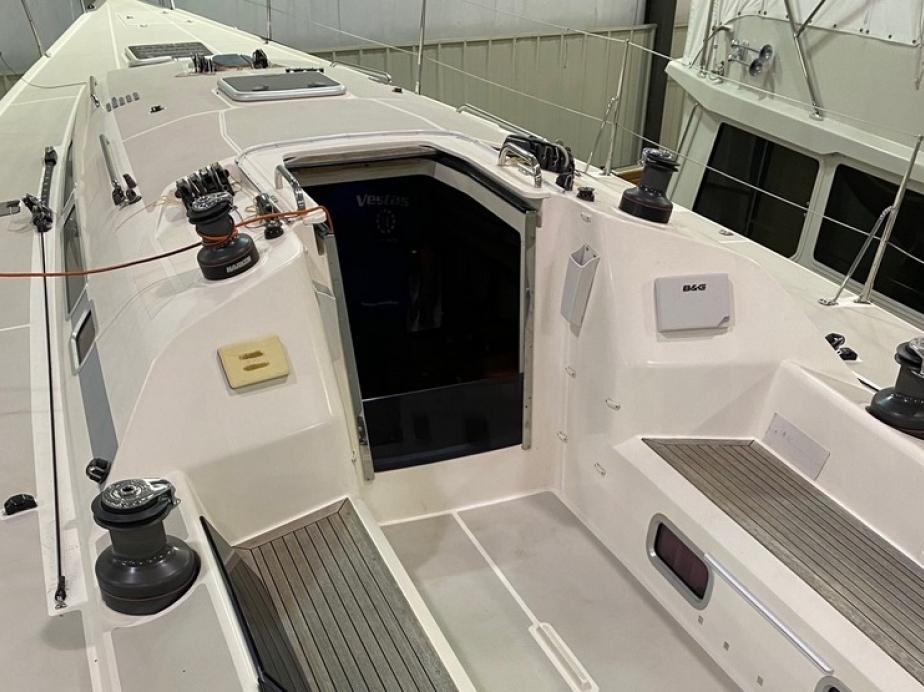

Deck and Cockpit

Winches:

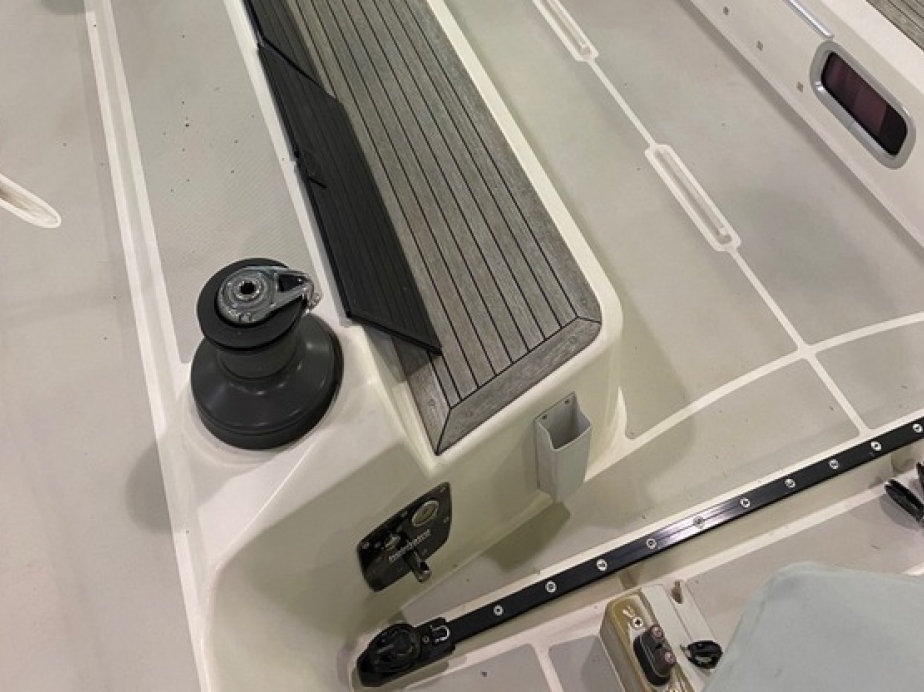

• Harken B 60.3STA primary winches
• Harken B53.2STA mainsheet winch (port side)
• Harken B53.2STAH, electric, two speed, mainsheet winch (starboard side
• Harken B44.2STA halyard winches.

General:

• Stainless steel pushpit, pulpit and stanchions.
• Grab rails each side of coach roof and companionway.
• Gray sheet bags in cockpit.

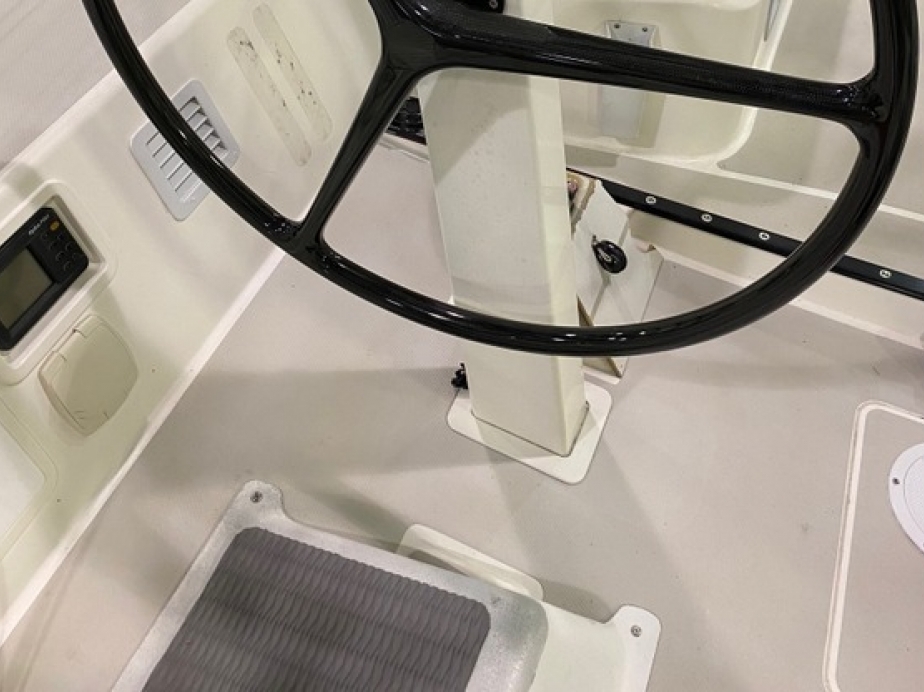

• carbon steering wheels, 935 mm
• Harken jib sheet tracks with lead adjuster system.
• Harken mainsheet traveler.
• Harken halyard lead blocks.
• Spinlock clutches.
• Removable anchor roller/ incl. Code Zero fitting at bow

Electrics

Voltage Systems:

• 12 V DC system for lighting and general service.
• 12 V outlets at chart table.
• 115 V GFI duplex receptacles/outlets (3) in saloon, head and nav station.
• Main distribution panel contains 12VDC gauges, 110 VAC gauges and circuit breakers.
• Spare main distribution panel with gauges, etc.

Battery Banks:

• Service battery AGM gelcell type 12 V 2x160 Ah in GRP box.
• Starting battery 12 V 50 ah.

Battery Chargers:

• Mastervolt Combi Inverter/charger model 12/2000-100.

Alternators:

• 115 A alternator.

Shore Power:

• 30 Amp shore power cord and inlet.

Other Electrical:

• Bottom of mast, shrouds and stays grounded to keel.Flush closing composite sea cocks for all through hull fittings below water line.

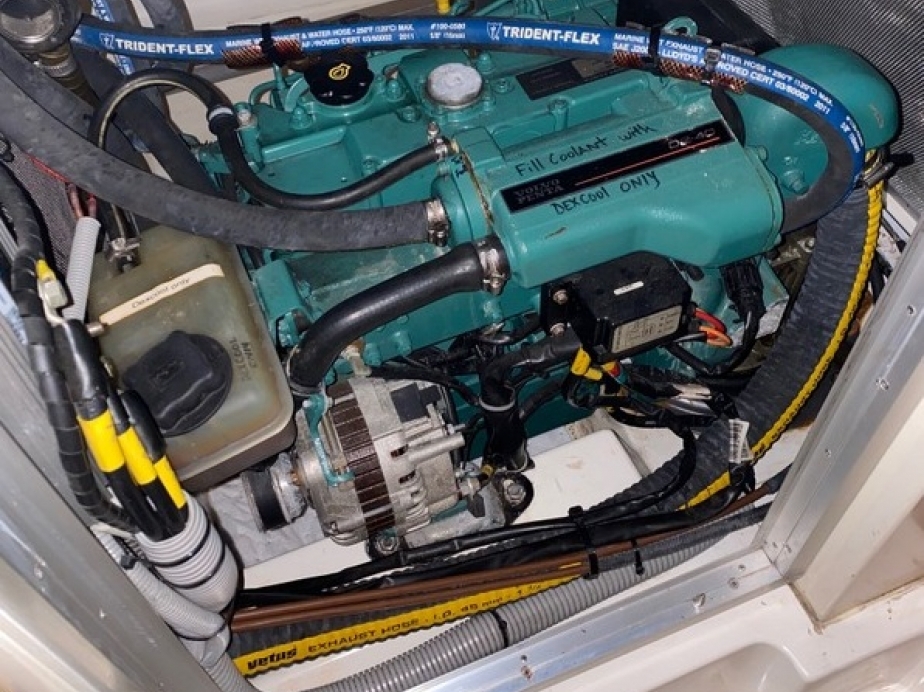

Engine

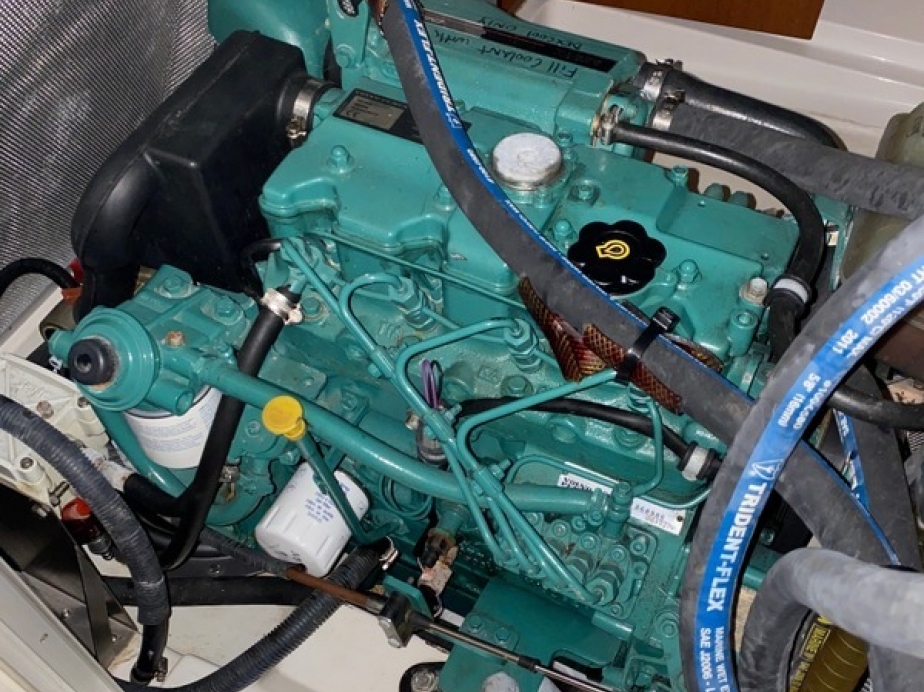

• Volvo Penta Model: D2-40 130 S
• Engine Type: Inboard with saildrive
• Horsepower: 40
• 2-bladed propeller.
• Fuel:Total capacity of 140.06 litres (37 US gal).

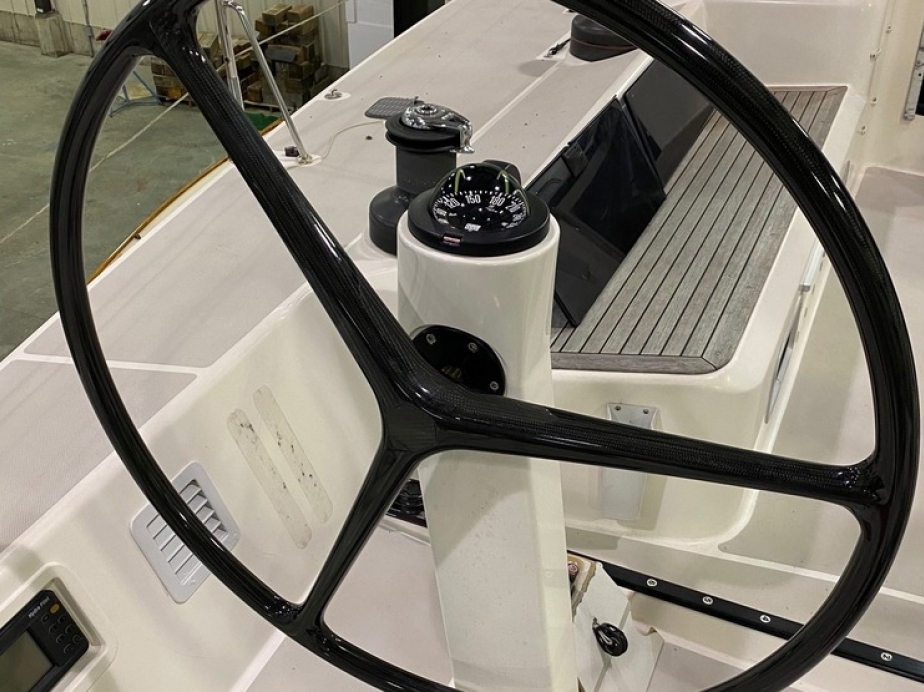

• Twin steering wheels w/compass on pedestals.
• Emergency tiller.
• Custom steering platforms for helmsman while boat is heeled.

Safety

• Two manual and one electric bilge pump.
• 600mm high life lines, with lower life lines at minimum ORC height.
• Custom hiking padding on lower life lines.
• Remote control fire extinguisher in engine space.

Electronics and Navigational Gear

Original Electronics – late 2007 and early 2008

• Panasonic Toughbook (not used for several years)
• Furino GP 37 GPS
• ICOM 422 VHF with mike extension to cockpit

B&G Race Package including:

• 5 B&G 20/20 masthead displays
• B&G H3000 Hydra Processor (replaced 2011)
• B&G Cabin mount display
• B&G Gyro Compass
• B&G Autopilot

2011 upgrades

• B&G 12” Zeus chartplotter at nav. station
• AIS

2013 upgrades

• B&G Zeus Touch, 7" multi-function display in cockpit
• B&G 4G Broadband Radar with removable carbon mast
• SIMRAD WIFI-1 MODULE

Entertainment Electronics

• Alpine 9883 AM/FM/iPod/CD head unit with cockpit speakers

Additional

• CANVAS ITEMS PROVIDED: Storage boom cover, storage mast cover, storage headfoil cover, gray wheel covers, hatch board bag
• Racing spray hood over companionway hatch only, Marine Blue 5031
