General

Construction

• Constructed using a controlled vacuum infusion process and pressed panels of E-glass,  carbon composite and Corecell for lightweight strength and rigidity
• Hull and deck painted in high quality two pack polyurethane coating in white as standard (Hull color:Grey RAL7046, Coachroof color:Matterhorn white G8003 )
• Below waterline surfaces finished with epoxy primer

Centreboards

• Composite centreboards featuring push-button deployment with three pre-set positions.
• Flush with hull when retracted.
• Fully deployed : 3.75m
• Mid-position : 1.95m
• Fully retracted : 1.35m

Rigging

• Jib Furler: Harken 4MKIV or equivalent
• Running rigging and deck equipment for main sail and headsail
• Two (2) McConaghy custom rope organisers

We have quotes for rigging available

Accommodations

• All joinery is custom built and finished to McConaghy's uncompromising high quality  standards and under the expert guidance of interior designers -Design Unlimited
• This modern and elegant interior combines the Bermuda and Sweden colour themes offered by McConaghy.
• The cabinetry and joinery is oak, the sole is white ash, the overheads wall liners are white with soft grey upholstery on the sofas and deck cushions.
• Blinds and screens for all overhead hatches.
• Blinds for side windows
• Air conditioning (reverse cycle Heat/Cool) - for 3 cabins and Saloon (all vents hiidden and in matching joinery)

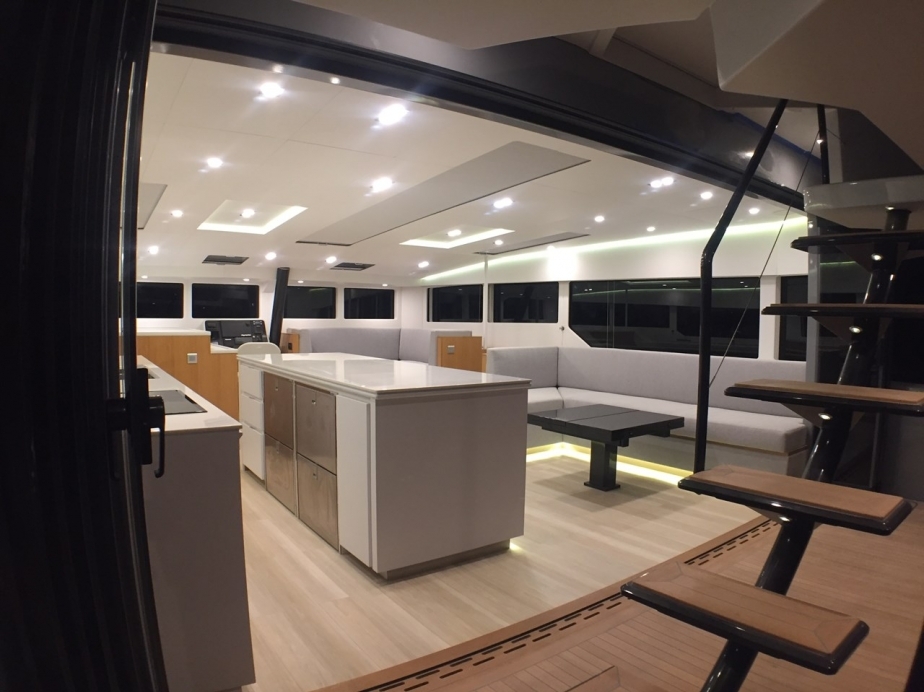

Saloon to Starboard

• Electric sliding main saloon windows
• L-shape settee with bench seats, cushions
• Dining table with fold out extensions on electric strut/s, lowers to become coffee table
• Long overhead skylight
• Corner settee and coffee table forward, adjacent to Nav Station
• Under seating storage
• Stairs to Starboard hull
• headliners
• Laminated soles
• Overhead recessed lights and down lights
• Courtesy lighting at floor level
• 110/230V AC and USB Sockets

Navigation Station Forward

• Hand embroidered pivoting helm seat at the nav station
• Navigation and electronics panel
• Clear carbon finish, customised layout
• 12V and USB sockets
• 110/230V AC Sockets

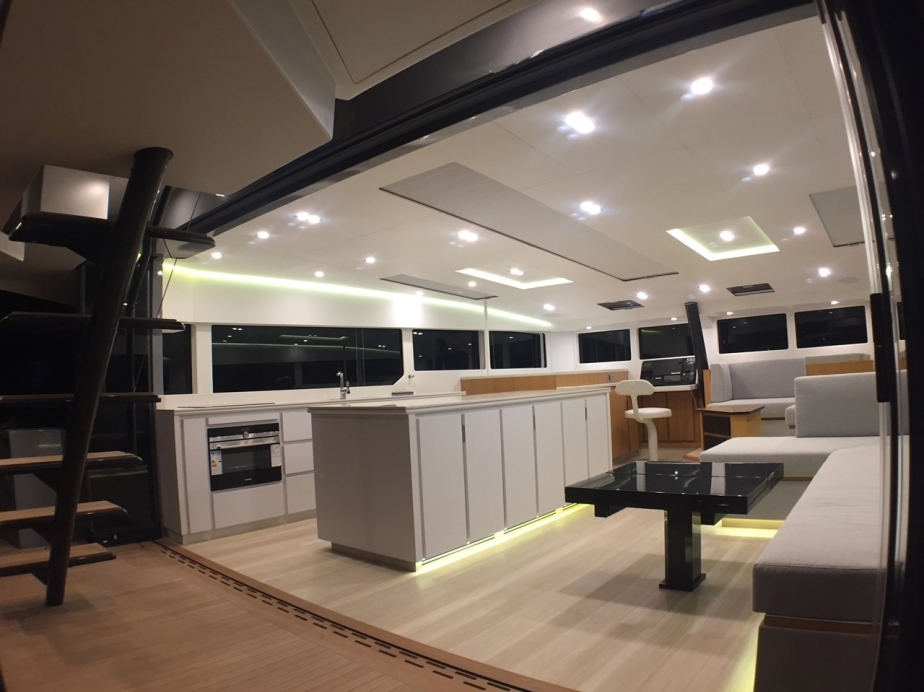

Port Side Galley and the "Island"

• Electric sliding saloon windows
• Skylights extending the length of the saloon over the Island and Galley
• Expansive custom Corian counter tops
• Twin stainless steel sinks
• Mixer tap hot/cold
• Isotherm 130L cruise fridge
• Isotherm 90L cruise fridge
• Electric oven and hob
• Storage under bench tops, cupboards & draws
• Recessed courtesy lighting at floor level around the Island
• In-built garbage bin

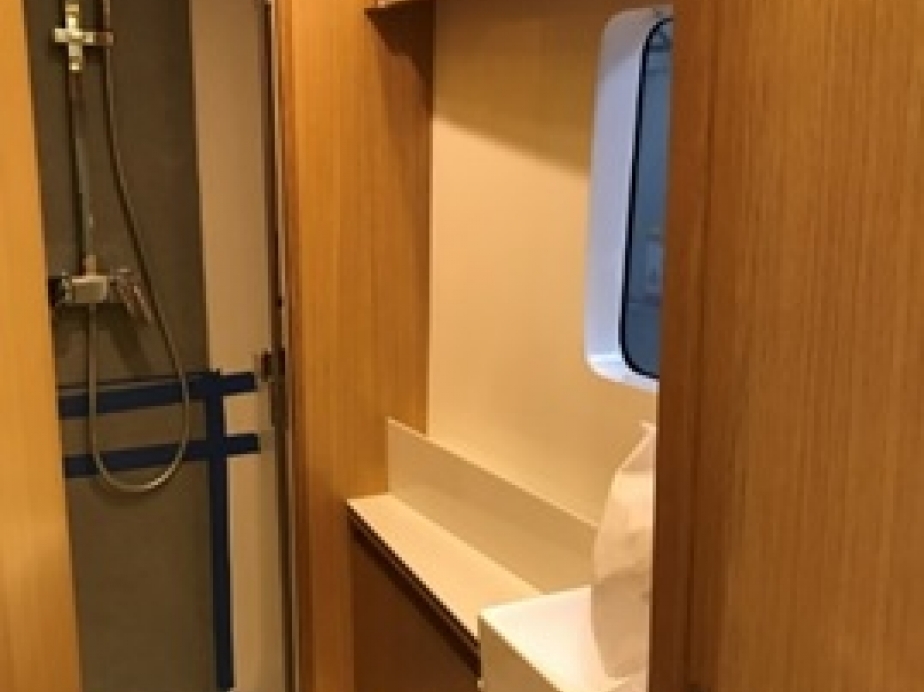

Forward Head, Shower and Vanity Area

• High quality shower fittings
• Corian sole in the shower
• Vanity sink with cabinet
• Mixer tap hot/cold
• Full length mirror
• Electric toilet
• Hanging locker
• Bench seat
• Seaward facing side windows
• 110/230V AC Sockets

Midship Guest Cabin

• Underdeck seaward facing double berth
• Panoramic tempered safety glass window
• Ample storage under berth
• Overhead recessed down lights
• Reading lights and lamps
• Overhead hatch
• Laminated sole
• Hull and Head liners
• Recessed courtesy lighting at floor level
• 110/230V AC and USB Sockets

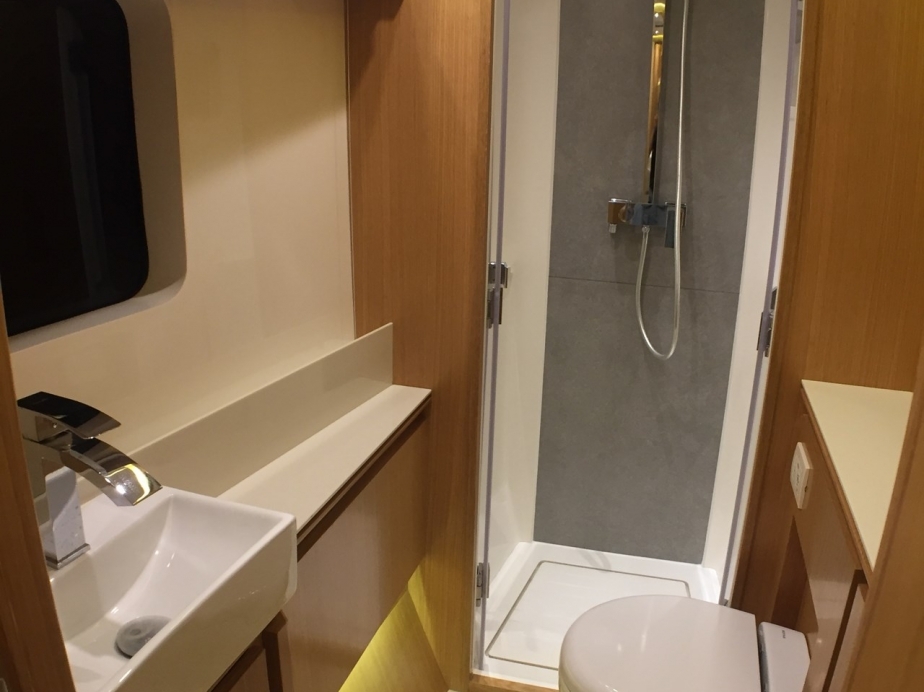

Aft Guest cabin, Head and Shower

• Twin single berths, easily converted to a double berth
• Ample storage underneath
• Overhead recessed down lights
• Reading lights and lamps
• Overhead hatch
• Laminated sole
• Hull and Head liners
• Recessed courtesy light at floor level
• 110/230V AC and USB Sockets
• Quality shower fittings
• Vanity sink with cabinet
• Full length mirror
• Electric toilet
• Door to stairs and Midships Guest Cabin

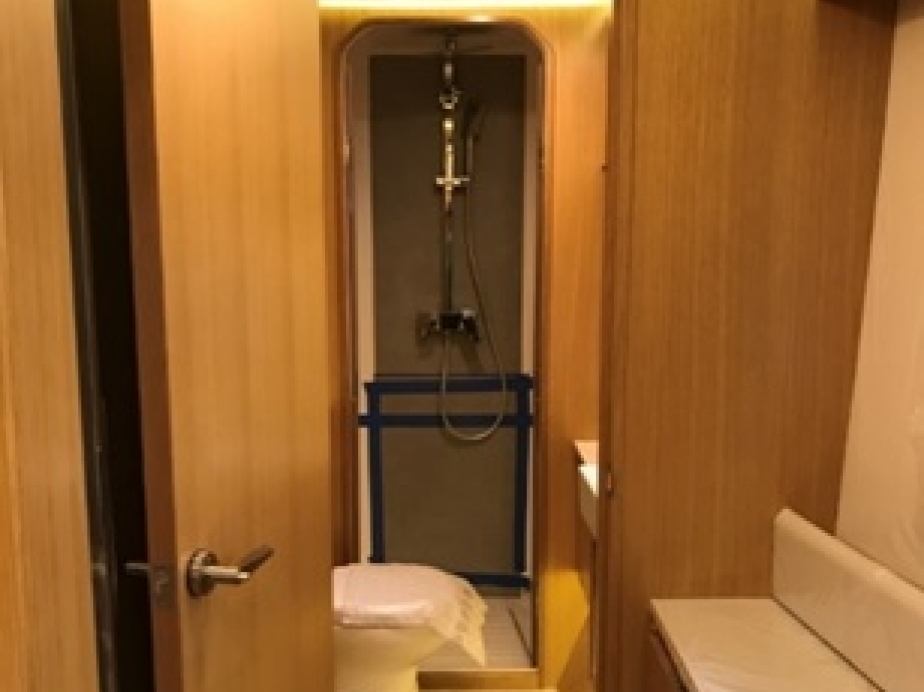

Forward Head, Shower and Vanity Area

• Quality shower fittings
• Vanity sink with cabinet
• Mixer tap hot/cold
• Full length mirror
• Electric toilet as standard
• Hanging locker
• 110/230V AC Sockets

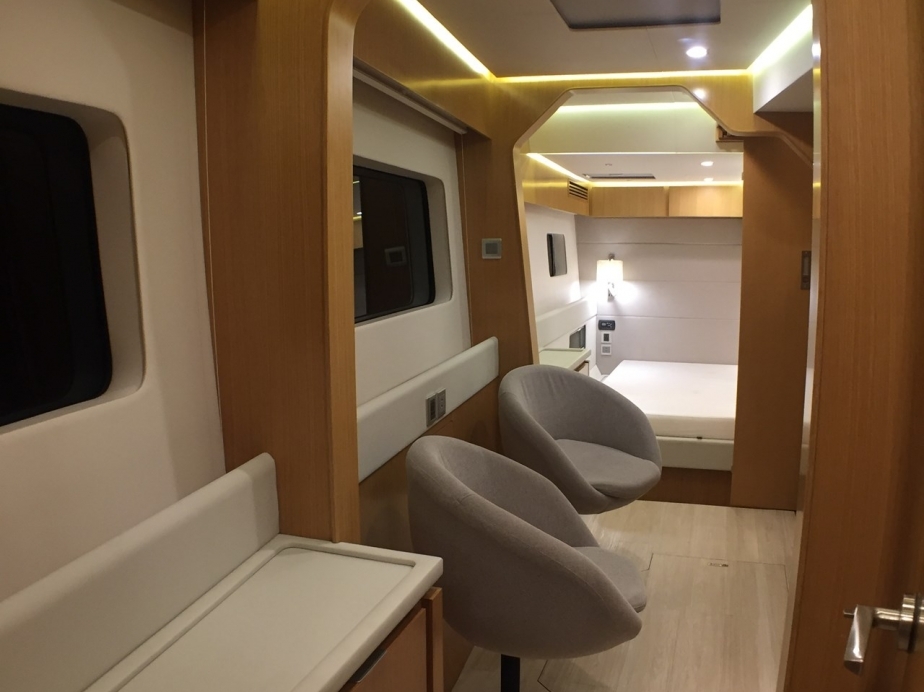

Mid ship lounge / Den

• Twin seats, with small fold away office desk
• Custom cabinetry with soft close drawers
• 110/230 V Sockets and USB sockets

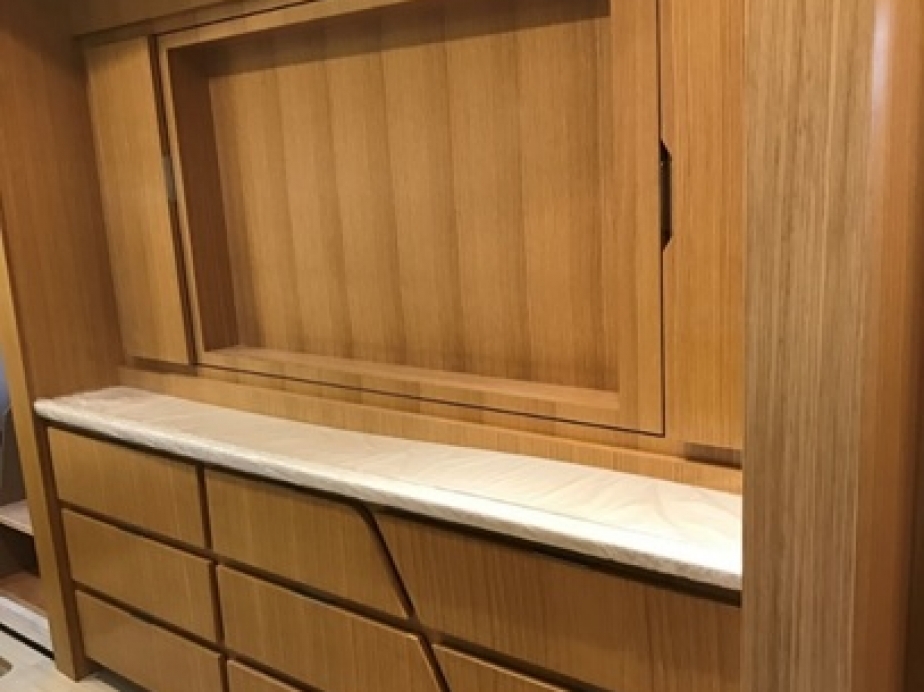

• Large articulating TV Cabinet (TV not included) or bookshelf / storage

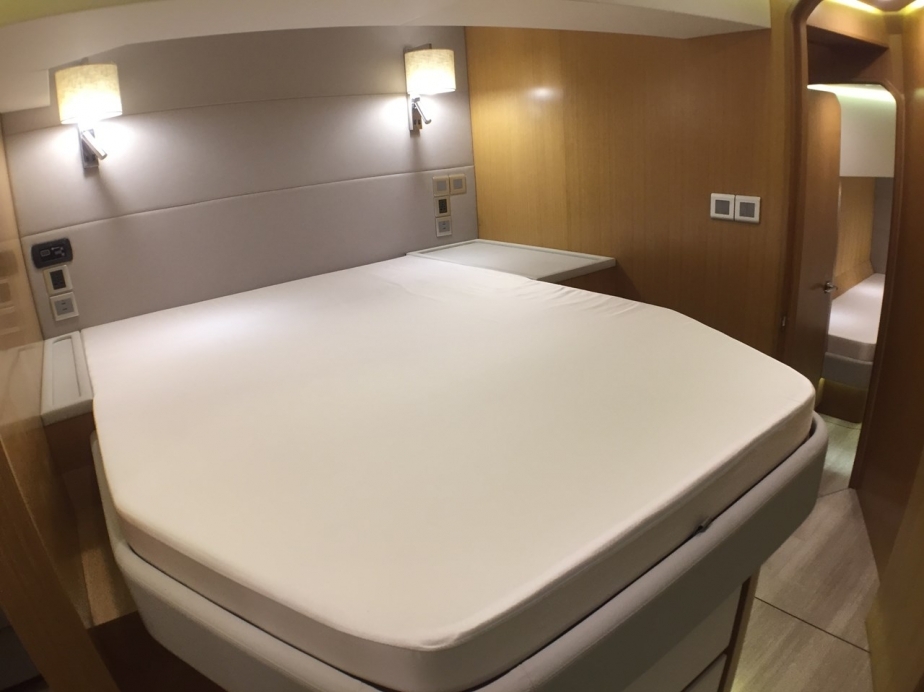

Aft Owner cabin

• Double Berth with ample storage and overhead lockers
• Overhead recessed and down lights
• Reading lights and lamps
• Overhead hatch
• Laminated sole
• Hull and Head liners
• Recessed courtesy lighting at floor level
• 110/230V AC Sockets

Plumbing

• Four (4) Rule automatic bilge pumps (2,000 GPM each )
• Two (2) Compac 50 Universal Manual Bilge pump
• Pressurised hot & cold water system
• Two (2) Isotherm water heaters – 40 Liter tanks slim
• One (1) Whale Universal Pressure pump 18L/M 45PSI
• Black water tanks approx 2 x 120L 1*60L
• Fresh water tanks approx 2 x 230L
• Fresh Water Level Sensor
• Holding tank sensor

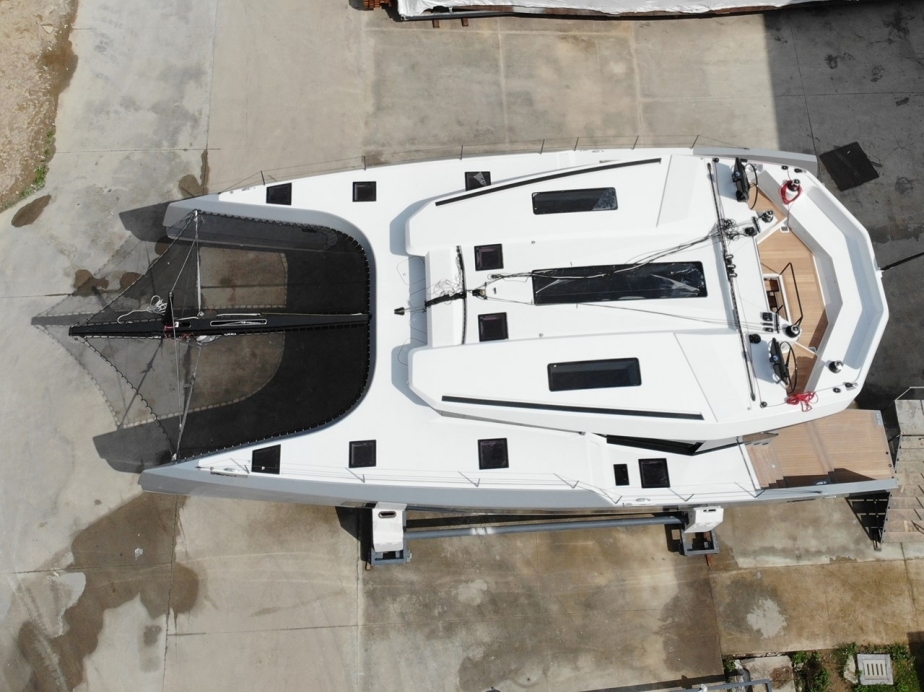

Deck and Cockpit

• Non-skid areas on the side decks and coachroof
• Lewar hatches flush with deck, drained to waterline
• Six (6) Nomen folding cleats
• Winches : Four (4) x Harken 60.3 STEA 12v Electric Radial
• Clutches: Sufficient for mainsail and jib

Hatches

• Lewmar flush deck hatches drained to waterline

Anchoring & Mooring

• One (1) Lewmar CPX4 electric windlass
• One (1) 40kg Lewmar anchor, 80m chain (galvanized), 30m warp

Misc Deck hardware

• McConaghy clear carbon composite stanchions
• Clear carbon recessed coachroof handrails port & starboard
• Stainless steel / dyneema life lines
• Two (2) deck water fillers
• Two (2) deck fuel fillers
• Two (2) deck waste pump-out
• Foredeck trampolines

Aft Main Deck

• Frameless, bi-folding, tempered glass safety doors between saloon and aft deck
• Clear carbon stairs and handrails to fly bridge with illuminated steps
• Transom steps, port and starboard, with discreet lighting
• Port side overhead rain shower recessed into flybridge structure, hot/cold mixer tap
• Telescopic swim ladder discretely housed in the transom

Fly Bridge & Helm Stations

• Twin helm stations, layout to suit Owner's Nav/Electronics selections
• Twin McConaghy carbon fibre steering wheels, style in below photo
• Five (5) red courtesy lights
• Lounge area with wrap-around seating

Extra´s

• Hydraulic swim platform and tenderlift with remote control, Seasmart cleets, safety locks, and four (4) folding padeyes
• Two (2) Seasmart pop-up stern cleats (200mm)
• Cushions for flybridge seating area - Sunbrella & Weathermax foam
• Deck wash pump salt/fresh, outlets on aft deck and foredeck

Electrics

24V Power Supply

• One (1) Galvanic Isolator
• Four (4) House Batteries
• Two (2) Main Engine Start Batteries
• Generator 12 kW Fisher Panda 15000i, 201 kg (required for aircon), choices of US/Europe style

Interior and Navigation Lighting and DC Power

• CZone DC Digital Switching System including touch screen, ipad compatible,voltage, tank, bilge and fuse alarms, lighting (switches and dimmers), custom controls for centreboards and hydralic transom
• Reading lights
• Down lights
• Cockpit Lights
• Courtesy lighting
• One (1) all round white nav.light (Hella 2LT 980 960-001)
• One (1) stern light (Hella 2LT 980 520-531)
• One (1) port light (Hella 2LT 959 900-001)
• One (1) stbd light (Hella 2LT 959-908-001)
• One (1) Tank Sensor Monitor

Electrical AC

• AC switch panel
• Shore power (includes cables) / combination inverter

Entertainment
Fusion entertainment system - Four (4) speakers in saloon

Engine

• Two (2) x 57hp Yanmar engines with Sail Drive and feathering propellers
• Single electronic throttle control mounted to starboard helm
• Insulation in Engine rooms
• Fresh water engine cooling system
• Engine instrument panel at helm position
• Two (2) Fuel tanks in total approx. 230 liters
• Racor500 fuel filters
• Exhaust waterlocks
• Water separator
• Exhaust muffler
• Two (2) Fuel Level Sensors
• Two (2) Deck Fillers

Additional

• Carbon composite longeron with integrated anchoring system
• Antifouling International Trilux
• Shipping cradle
