Rigging

Designed by America's Cup (Alinghi and Oracle) mast designer Kirst Feddersen

• Continuous PBO Standing Rigging Navtec 2012
• New Forestay 2014, new D1s 2015

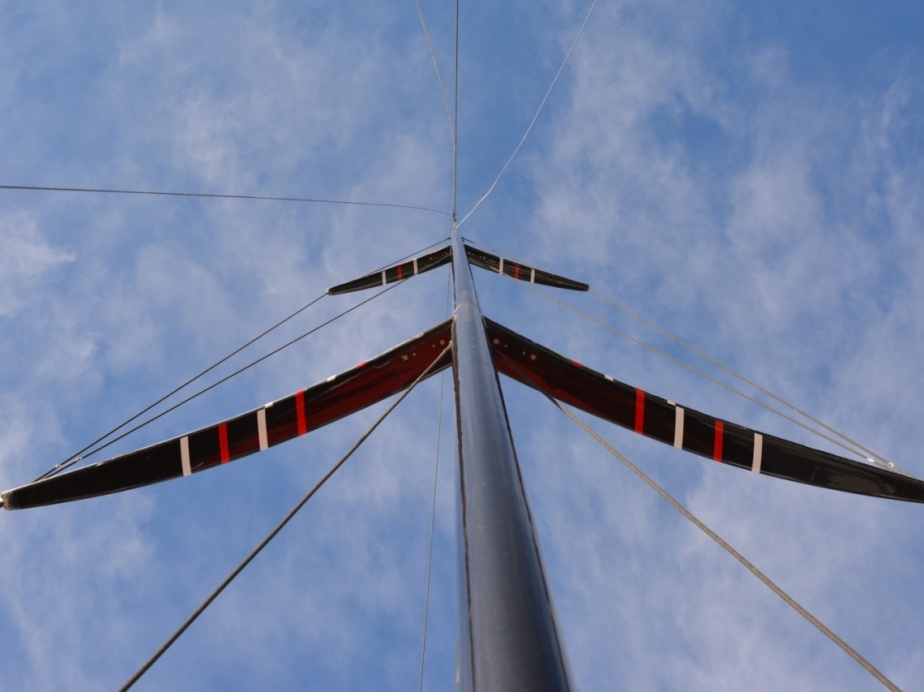

• 2 Sets of autoclaved prepreg carbon swept back spreaders
• Autoclaved prepreg carbon Split mast tube, with reusable join for ease of transport
• Halyard lock on main (full hoist and reef) and Jib halyard
• McConaghy autoclaved prepreg carbon fibre boom, incl single reef sheave in boom,
• nternal outhaul with adjuster on boom
• Integrated internal hydraulic mast jack
• Easily adjustable mast step for prebend tuning
• High gloss, clear coat carbon finish on mast and boom and bowpole
• Upgrade 2nd MH Spi Halyard (now fitted as 2:1 for Code0)

Running rigging

• 1x 1:1 Mainsail halyard lead below with halyard lock
• 2 x Masthead spinnaker halyard
• 1 x Jib halyard with bullet halyard lock
• 2 x Jib sheets for T-clew ring attachment
• 4 x Spinnaker sheets
• Soft boom vang with purchase below deck, exit in cockpit aft
• Jib car inhaul adjuster lead to cockpit
• Jib up/down
• Jib cunningham
• Jib halyard lock release string to pit
• Retractable Bowpole extension line lead to cockpit (not fitted)
• Fixed Carbon Bowsprit with
• 2x Spinnaker tack line led to cockpit
• Main outhaul adjuster purchase inside boom
• Main Cunningham
• 2x Topmast backstay tails
• Profurl Nex 2,5 furler with custom Hampidjan AT cable for Code0

Sails

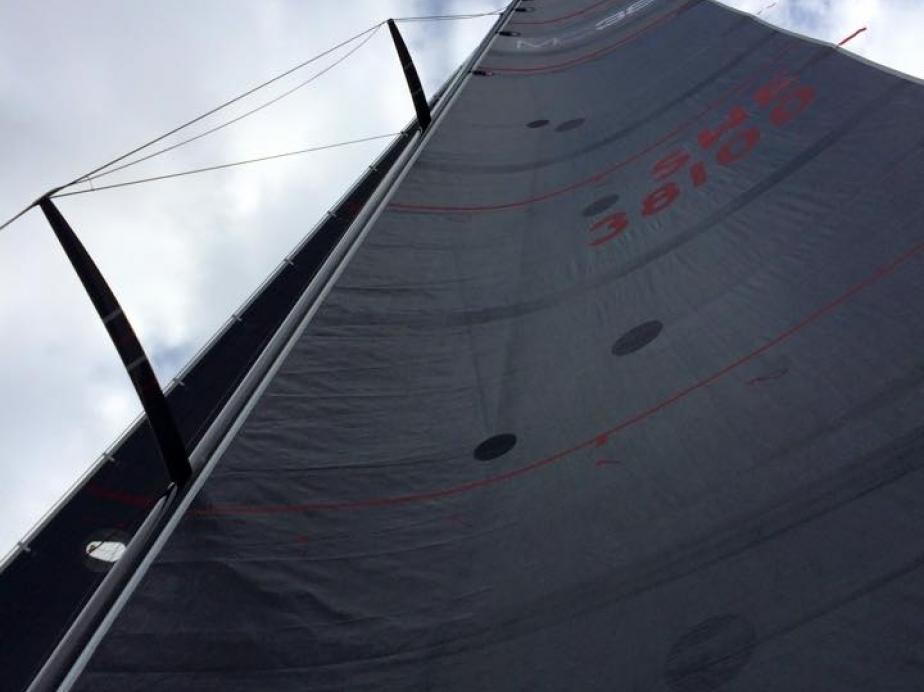

Mains

• Main 2012 North 3Di 780
• Main 2014 North 3Di 870 Raw
• Main 2016 North 3Di 870 Raw OD

Jibs

• Jib L/M 2012 North 3Di 780
• Jib M/H 2012 North 3Di 780
• Jib H #4 2013 North 3Di 780
• Jib L/M 2016 North 3Di 870 Raw
• Jib M/H 2014 North 3Di 870 Raw

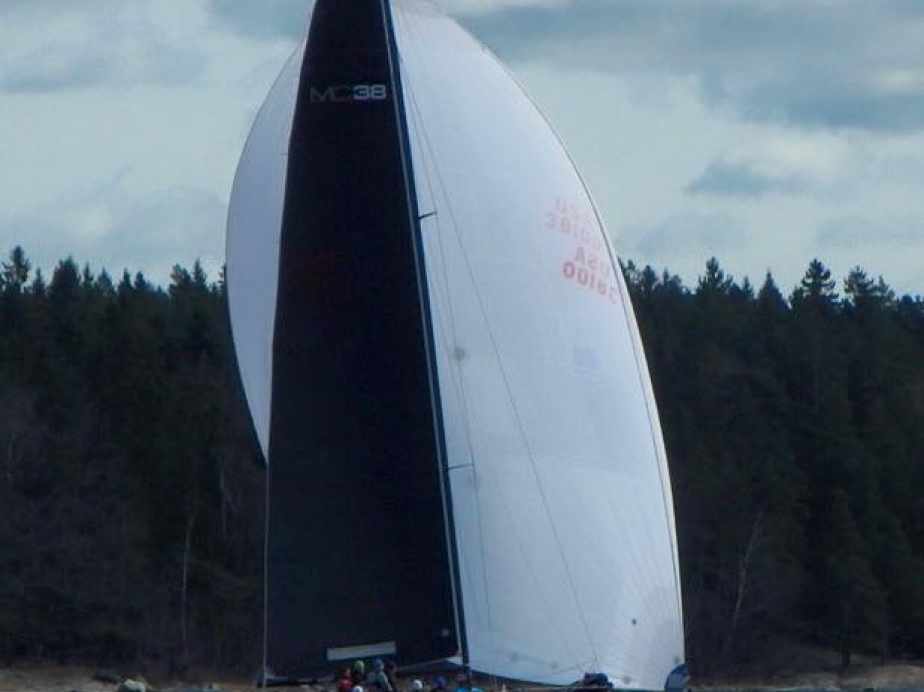

Spi's

• A2,5 2013 North , ok for training
• A2 2012 North, ok for training
• A2 2015 Good for racing
• A3 2016 Good for racing
• Code0 2015 Good for racing

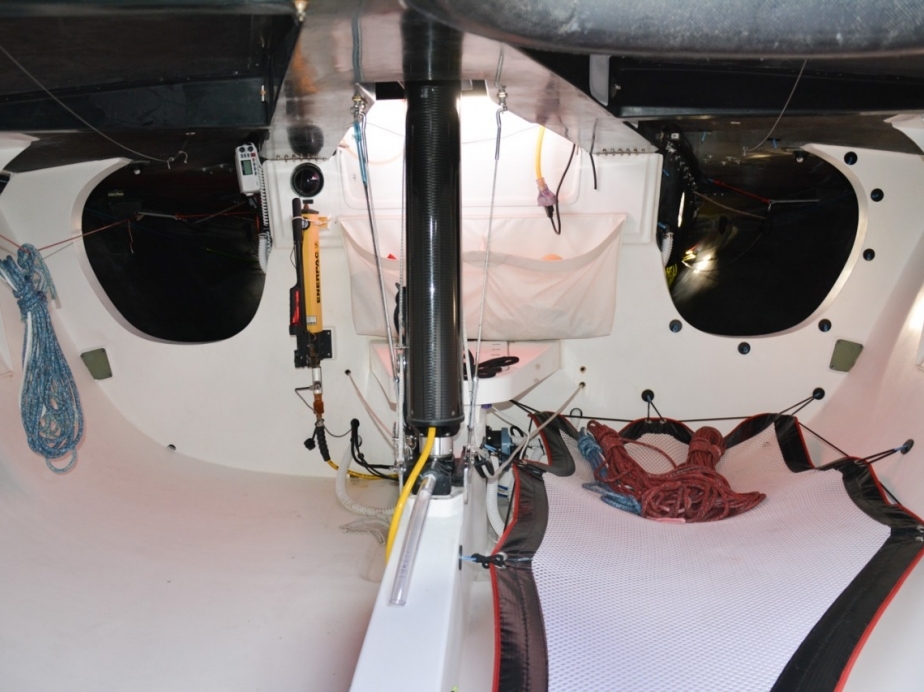

Accommodations

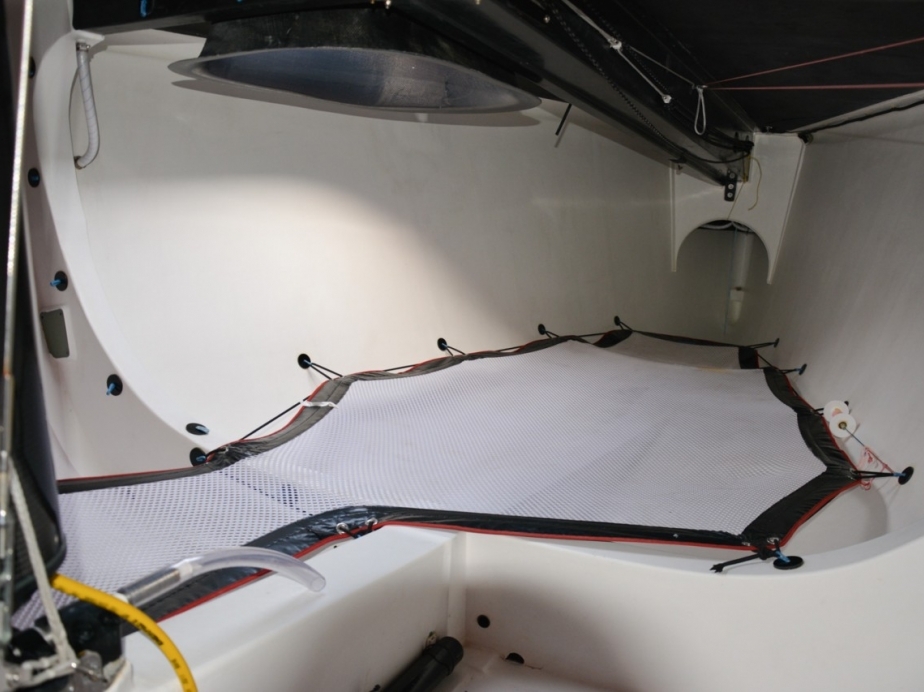

• Pipecots 4x removable for OD (cat 4 racing requirement)
• Porta potti marine toilet (cat 4 racing)
• Stove and galley unit removable for OD
• Fresh water system 2x 50L bladders, 1x hand pump (cat 4 racing)

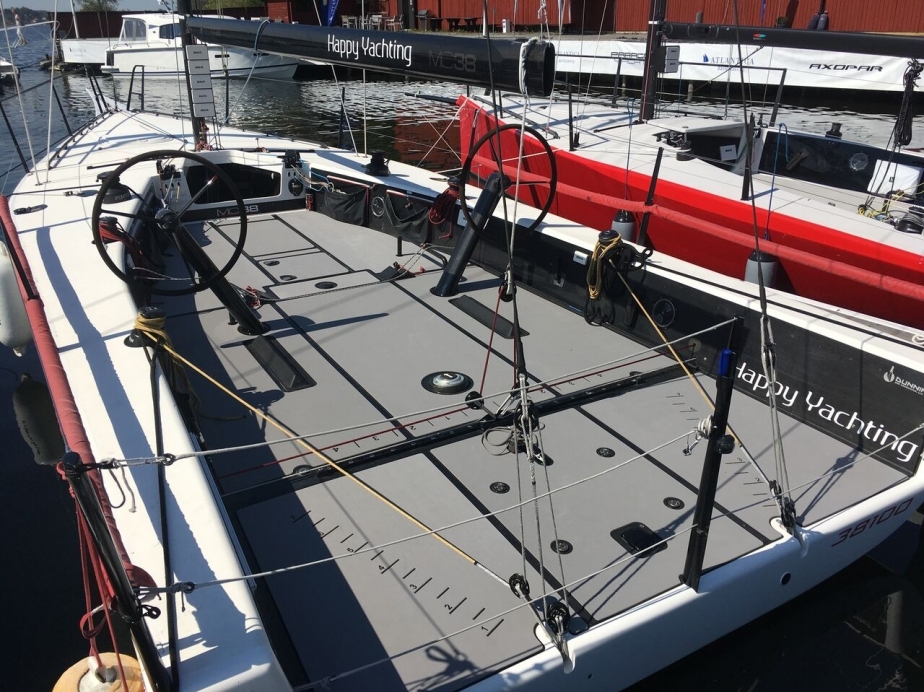

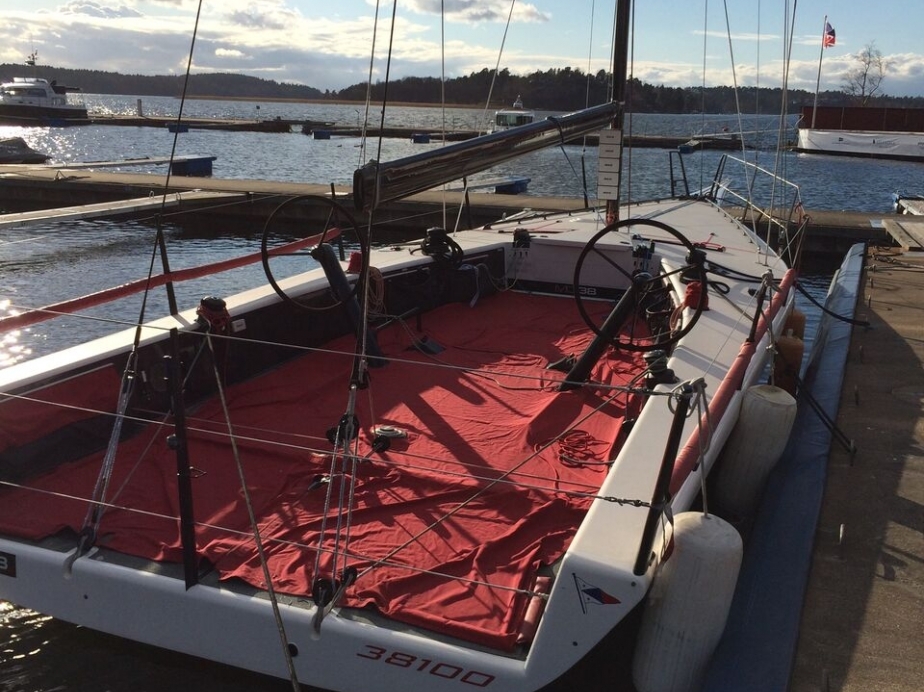

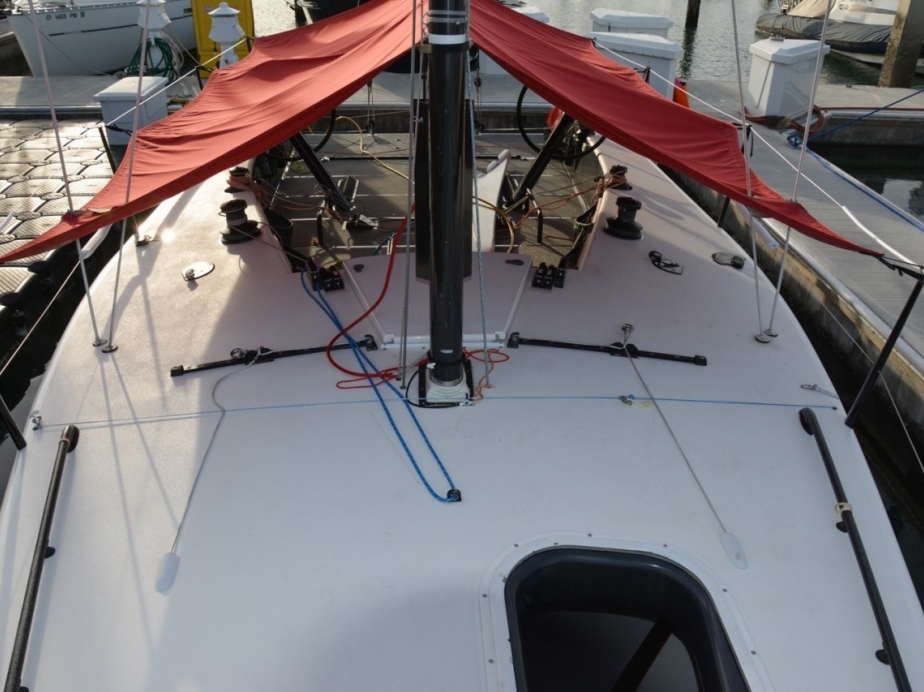

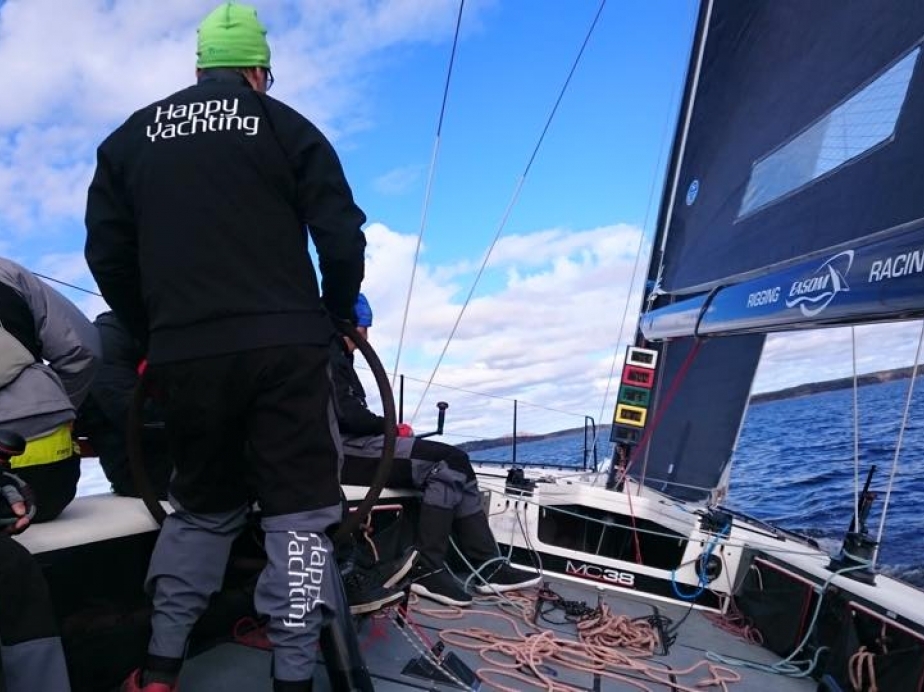

Deck and Cockpit

• 2 x Primary Winches Pontos Grinder 46
• 2 x Primary Winches - Harken 46.2 STP Quattro (not fitted)
• 2 x Mainsheet Winches - Harken 40.2 STP (Self Tailing Performas)
• 2 x BackstayWinches - Harken 40.2 STP (Self Tailing Performas)
• 6 x Harken winch handles
• 2 x McConaghy carbon fibre winch handle pockets
• Sliding foredeck hatch with pneumatic seal, manual hand pump lead to cockpit
• 4 x Spinlock XX Jammers with McConaghy custom organiser
• 2x Spinlock XX Jammers for tackline with fixed Bowsprit.
• Harken jib track with jib car adjuster with underdeck tackle
• Harken mainsheet track with traveller car

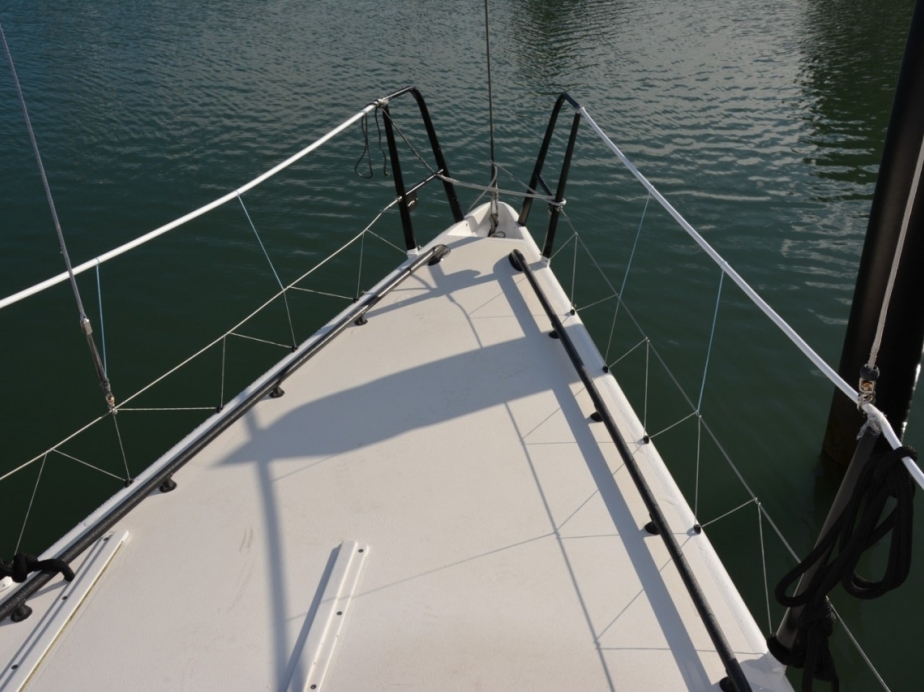

• McConaghy Carbon Fibre toerails to ORC Standards
• McConaghy autoclaved glass/carbon stanchions, pushpit and pulpits
• Stainless Steel 1/19 wire lifelines
• Helmsman and mainsheet trimmer foot bars
• Full custom cockpit Raptor Deck grip mat. New 2017
• McConaghy carbon fibre lifeline roller tubes with end fittings (two forward sections of top life lines, port and starboard)
• Pad eyes for liferaft
• Cockpit clipping Points 2x Wichard folding pad eye(upgrade, required for CAT4 racing)

Electrics

• Mastervolt 100Ah Lithium battery, 32Ah Lead-acid for engine
• BEP 4 x Breaker Box
• Hella marine LED navigation lights (CAT4 racing)
• 6x Electric Bilge Pumps
• Watertight USB sockets

Electronics and Navigational Gear

• Professionally installed B&G H3000 Hercules Performance

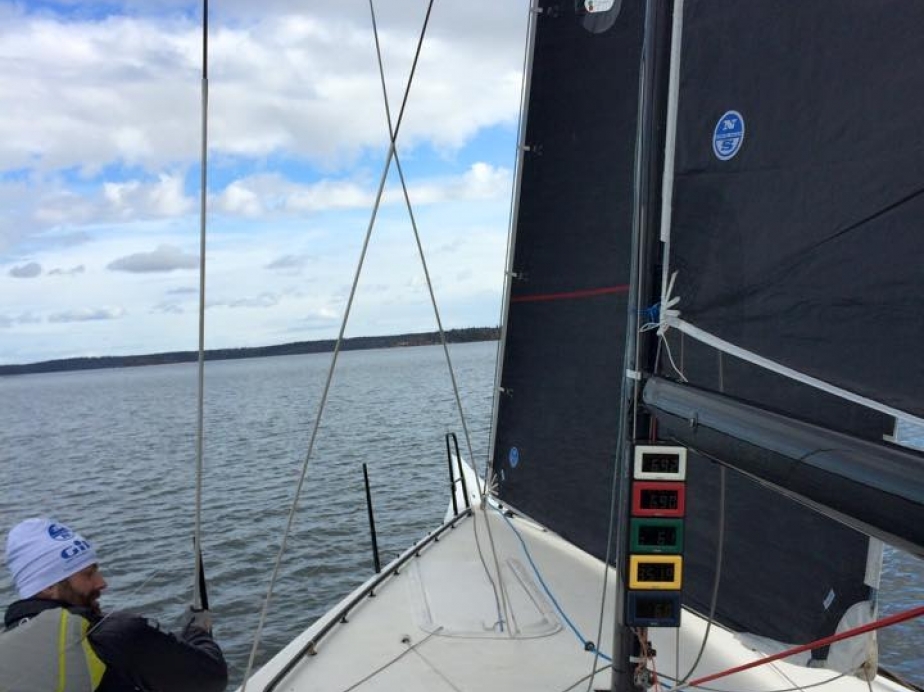

• 5x B&G H3000 20/20 display pack on mast in carbon bracket
• 2x B&G H3000 GFD in cockpit sides
• 2x B&G 10/10 display at runner winches
• B&G VMHU with custom arm for Windex
• B&G Halycon 2000 Compass
• Dual Signet speed sensors
• Internal Depth sensor
• GPS antenna
• Clinometer
• Loadcell on forestay
• Loadcell on mastjack
• Silvamagnetic compass (Cat 4 and Cat 2 racing)
• AIS Tranceiver
• Mini PC for VNC connection from iPad
