MAT 1180

Print to PDF

SOLD

  • Reference ID 363
  • Builder MAT Yachts
  • Model 1180
  • Designer Mark Mills
  • Year 2016
  • Location Sweden
  • L.O.A. (mtr) 11.80
  • Beam (mtr) 3.98
  • Draft (mtr) 2.90
  • Displacement (Kg) 4375
  • Material Composite
  • Engine Yanmar 3YM30AEC
  • Send to email

Yacht description

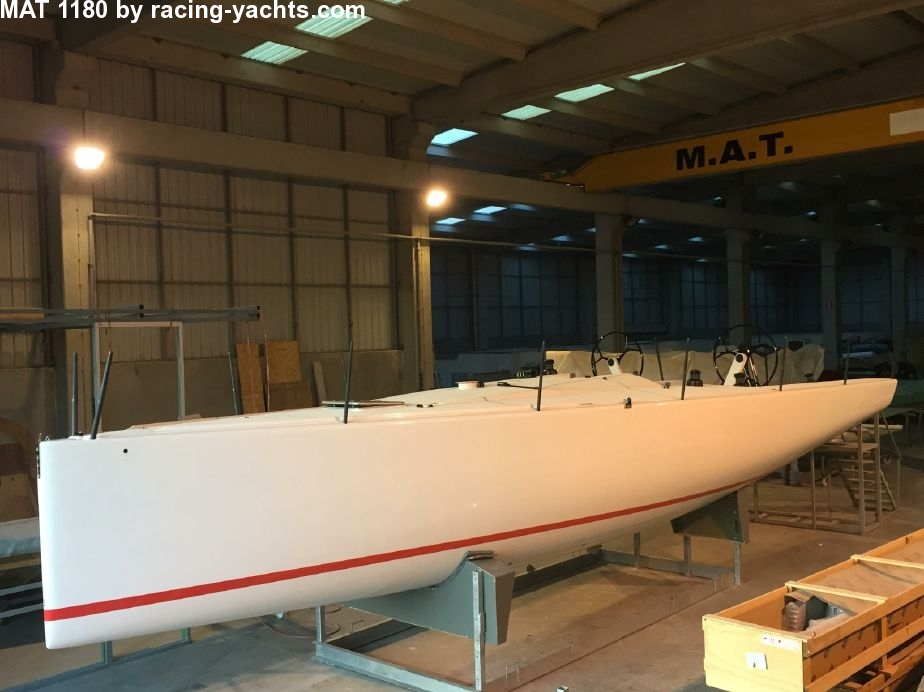

MAT1180 hull #5 2016

Boat has only raced twice this season due to other commitments by her owners.

She is now without stickers and ready to be transported and dismantled in a shed and stored since winter 2018/19. Keel, rudder and rig is off as is her commercial wrap in black. All maintenance is done by sailing pro´s and the yard is second to none when it comes to maintain race boats.


Currently full boat and equipment is serviced to be ready to race

Construction

  • Female hull and deck tools
  • E-glass, carbon fiber, PVC core, epoxy vinylester resin
  • Vacuum assisted resin infusion
  • ISO 12215 structural regulations category A
  • Gelcoat finish on hull, deck and internal structure
  • Custom draft adjustement from 2500 mm to 2600 mm Replaced!
  • International VC Tar2 epoxy base coat and VC Offshore Teflon antifouling for racing
  • New 2017 2,9m keel and bulb design

















Rigging

  • Backstay: Harken 40.2 STP Self Tailing Performa instead of 35.2 STP
  • Extra work at deck collar to accommodate 4.75" mast section
  • Extra carbon internal structure for higher loads on mast and forestay (5 tons)
  • One step up in chainplates for higher loads
  • Carbon roller for take down

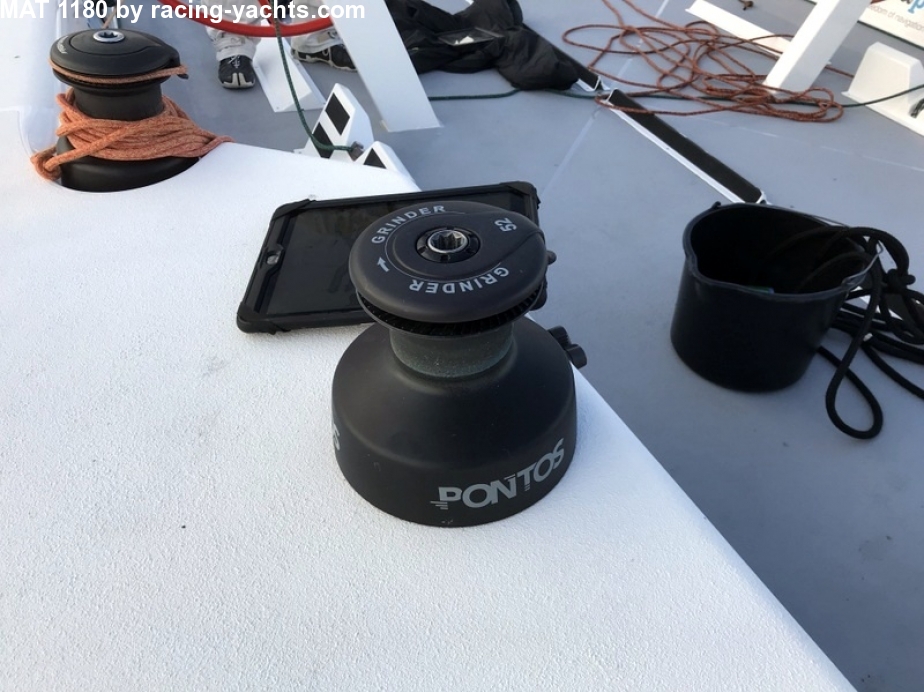

  • Pontos 52 Jib and spinsheet upgrade for tremendous speed and take down
  • Modified Vang system for easy handling aft
  • Marstrom carbon rig, very light and super stiff.
  • Halyard locks main, jib and code Facnor
  • Marstrom carbon high aspect racing boom, 12,4 kg
  • Running rigging: Constantly replaced and serviced by partner Happy Yachting. Grand Prix level

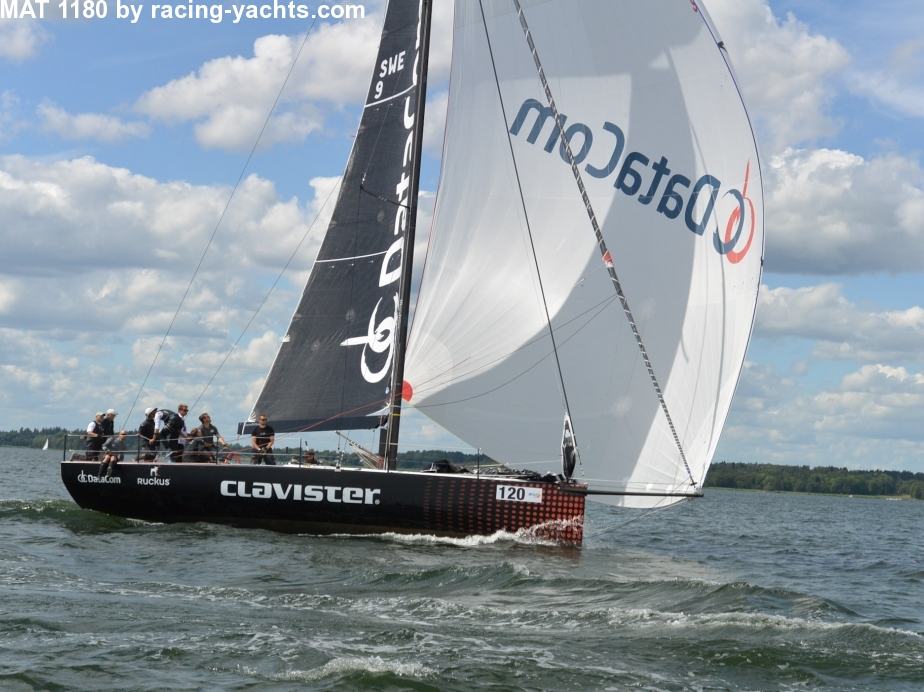

Sails

All North Sails. All sails serviced and stored at North Sails Stockholm. Very good condition.

  • 2016 Main 3Di Raw (recut 2018)
  • 2017 Main 3Di Raw
  • 2016 Main Dacron Triradial, smaller transport
  • 2016 Storm/trysails
  • 2016 Jib L/M 3Di Raw (recut 2018)
  • 2016 Jib M 3Di Raw (recut 2018)
  • 2016 Jib H 3Di Raw
  • 2016 Staysail for Assy
  • 2016 Code 0 close upwind incl. Cable (needs recut to fit new rig measures)
  • 2017 Code 1 aka Force. Same design as the Fast40 class
  • 2016 A1
  • 2017 A2
  • 2016 A3
  • 2017 A3 new design.

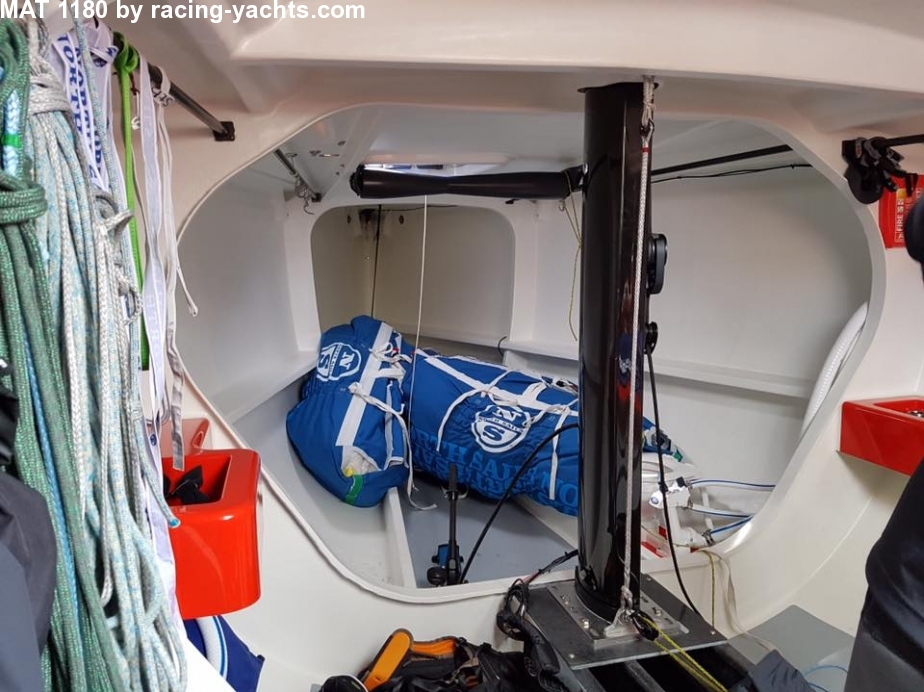

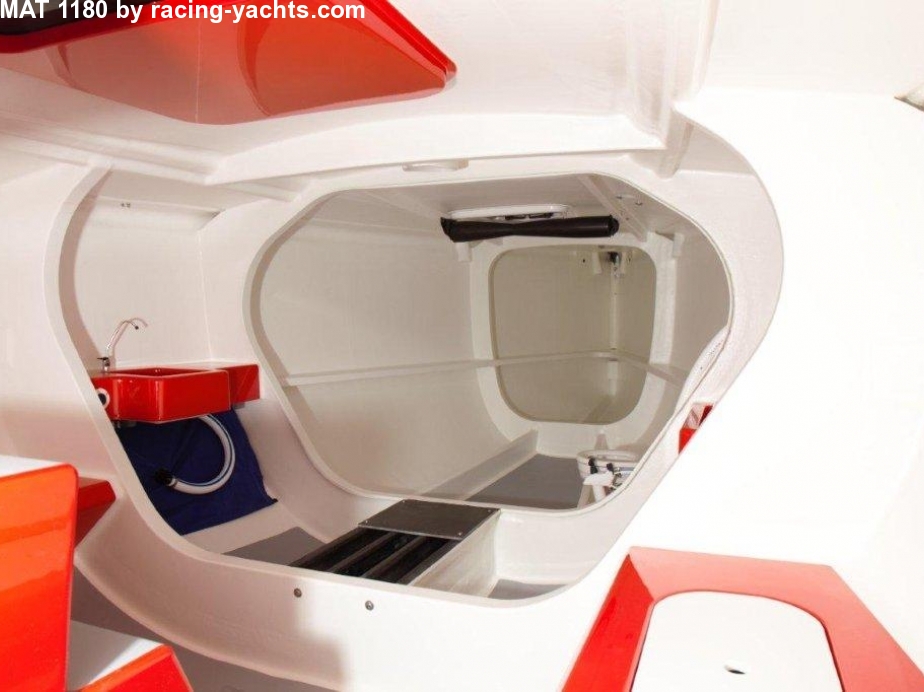

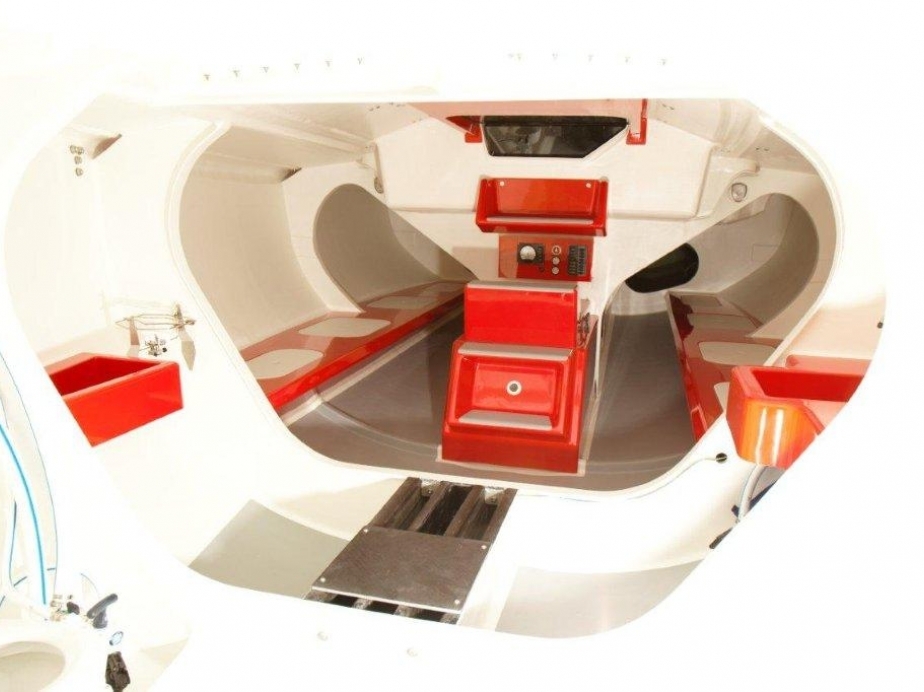

Accommodations

  • Ultra thin engine box and bunk tops
  • Light chart table over fuel tank for navigation
  • 4 pipe cotes for ocean race
  • Internal grab rails in carbon
  • Galley with sink, pressurized fresh water and cooker
  • 100 liter flexible fresh water tank
  • Two manual bilge pumps
  • Jabsco marine toilet
  • Racing marelon seacocks and flush valves

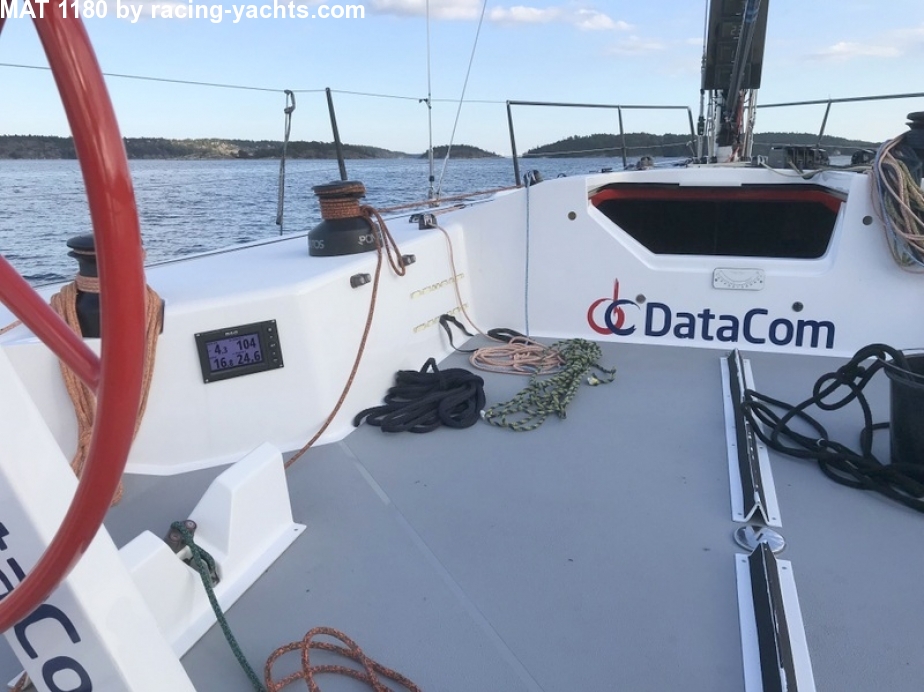

Deck and Cockpit

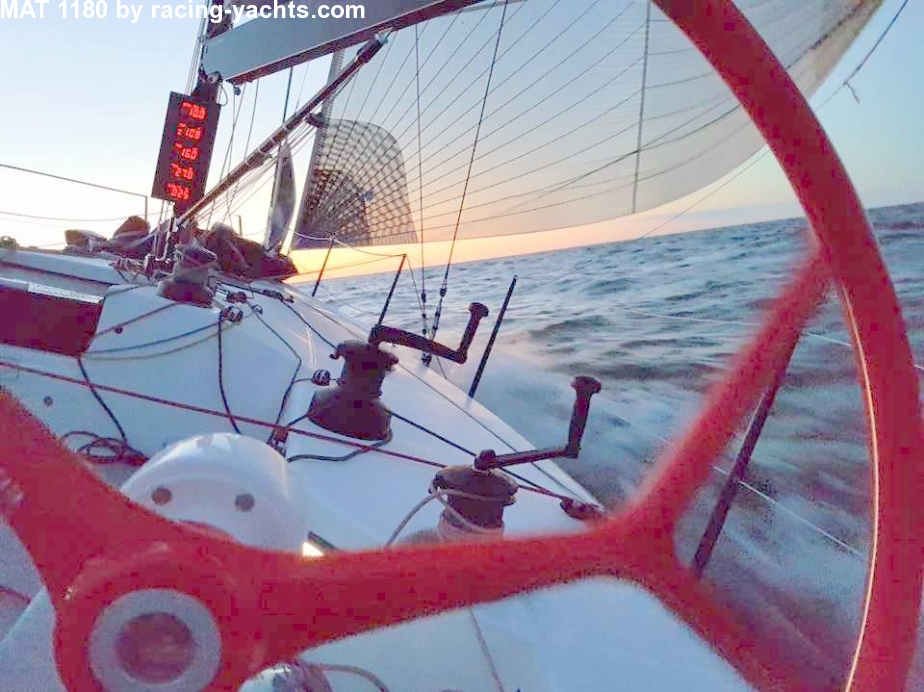

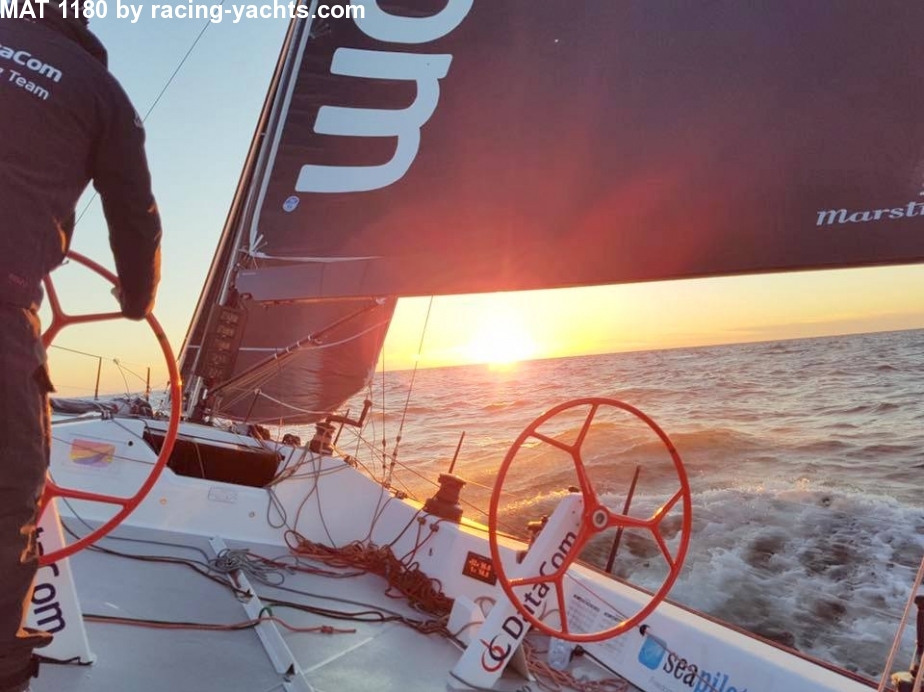

  • 900 mm composite twin wheels, red

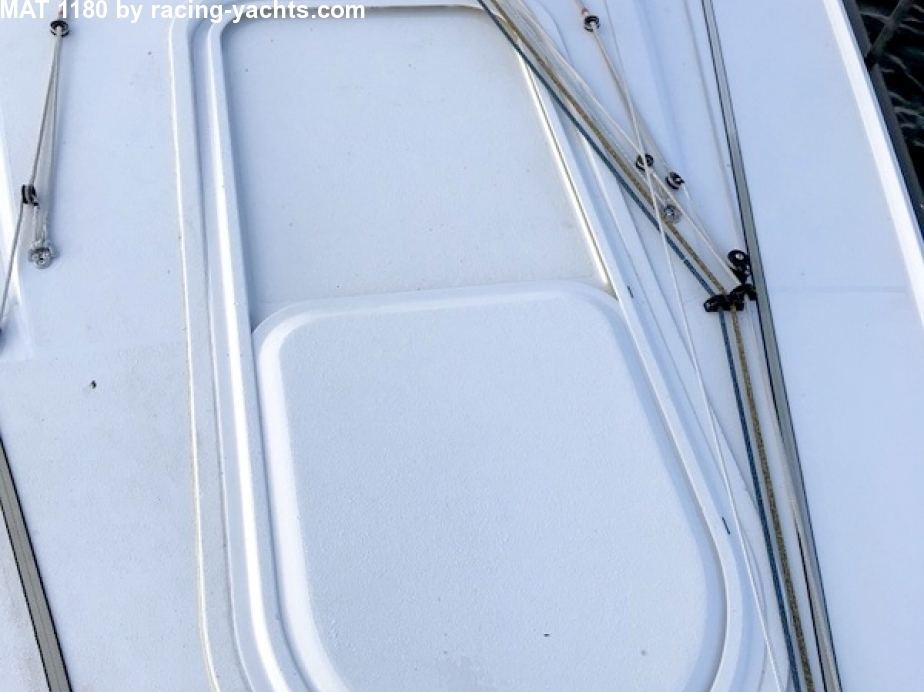

  • Pneumatic Sliding Hatch, MAT/Diverse Yachting
  • Carbon tubing between stanchions for low friction

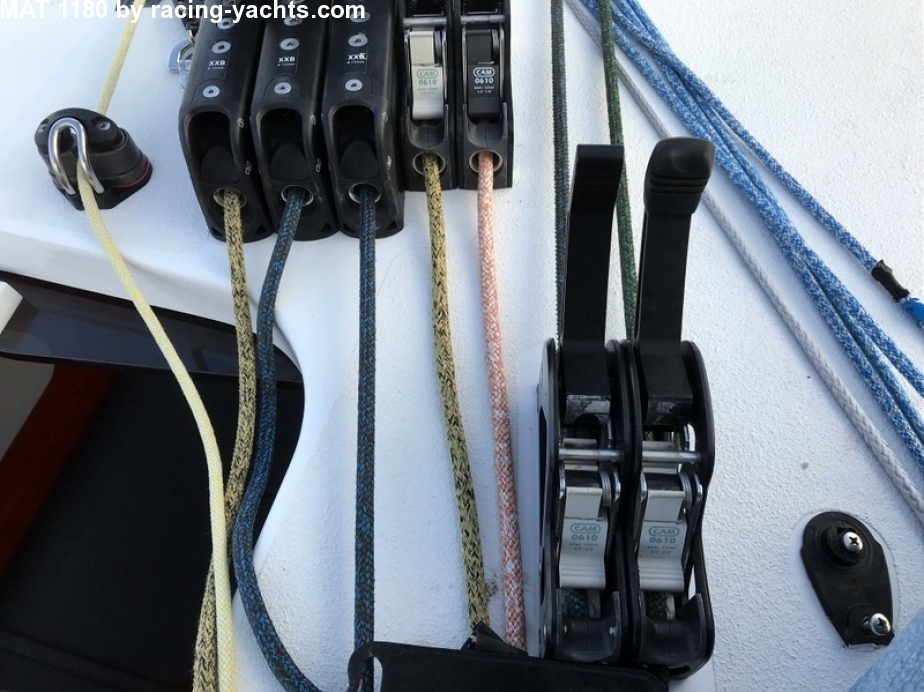

    Ceramic upgrades Spinlock
    All blocks and hardware Grand Prix version Harken/Antal
    Spinlock engine lever

Harken winch upcharge:

  • Primary: Harken 60.2 STP Self Tailing Performa instead of 46.2 STP
  • Main: Harken 50.2 STP Self Tailing Performa instead of 46.2 STP
  • Pit: Harken 46.2 STP Self Tailing Performa instead of 40.2 STP
  • Lewmar EvoRace 45 backstay winch upgrade
  • Harken 52.2 STP Main winch upgrade
  • Marstrom carbon rig, very light and super stiff. Halyard locks main, jib and code Facnor
  • Marstrom carbon high aspect racing boom, 12,4 kg

Electrics

  • Lime Lithium battery system 2x60Ah 16kg in total
  • LED interior lights
  • LED navigation lights

Safety

  • Fire extinguisher
  • Life vest x10

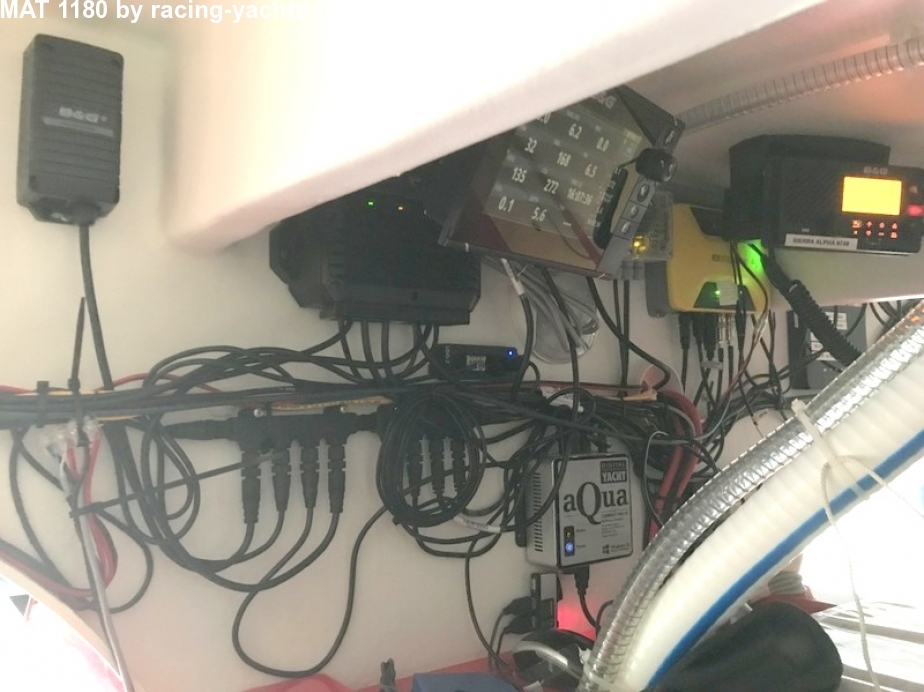

Electronics and Navigational Gear

  • B&G H5000 Hercules CPU
  • ZEUS²7 Multi-function Display

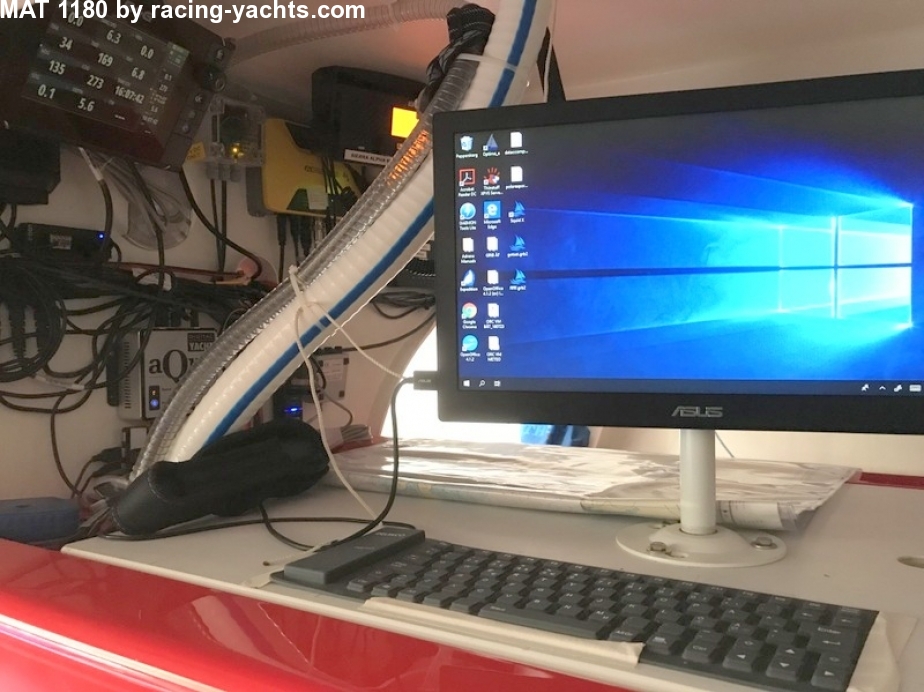

  • Aqua 12v SSD server win 2016 server with Expedition
  • 16” Asus usb Display
  • Load cell pin on forestay, Diverse Yachting. 2x B&G 10/10 at backstays
  • VMHU Pack 1050mm, carbon wind instrument
  • AIS RX Carbon+ with GPS
  • Simrad Precision9 GPS
  • Simrad HS70 GPS Compass, primary
  • H5000 3D motion sensor

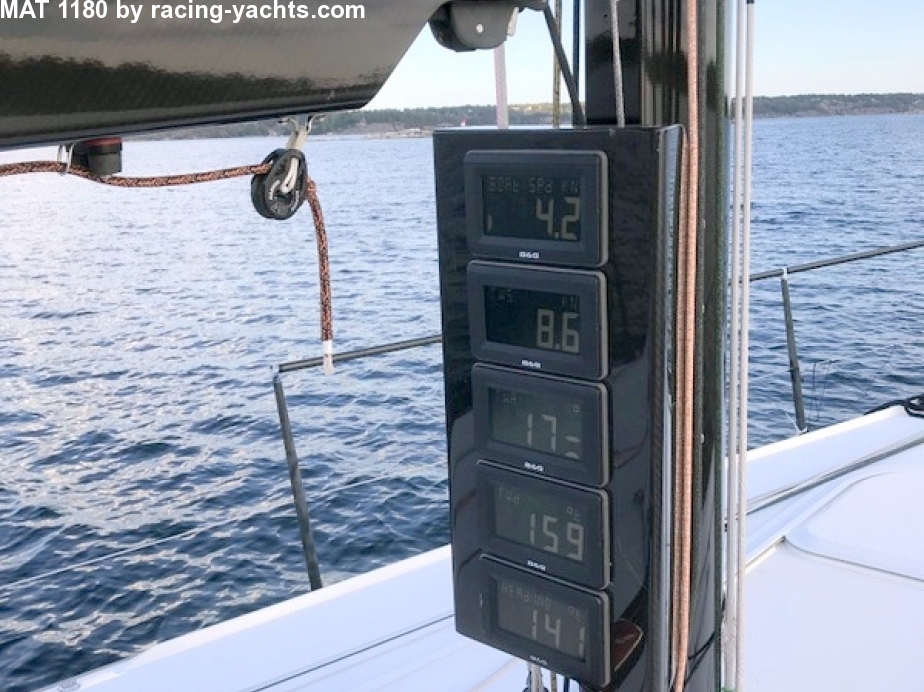

  • 5x 20/20 HV displays in carbon bracket
  • 2x B&G H5000 Graphic Display
  • V50 VHF Marine Radio, with AIS and DSC. NMEA2000
  • GoFree wifi and mast top antenna 4G

Additional

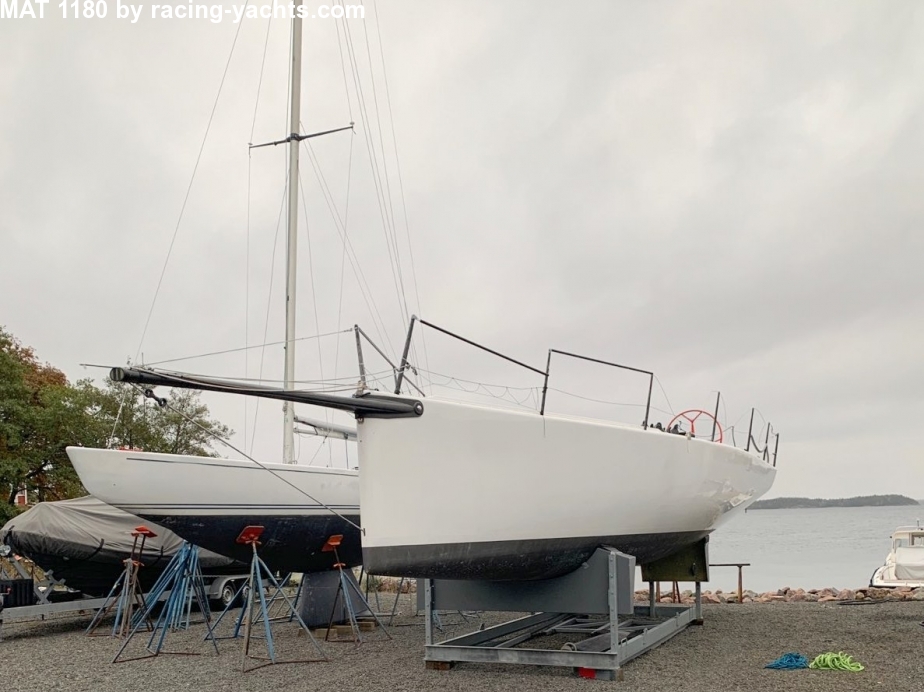

  • Steel cradle, low high position, galvanized
  • Spare carbon stanchions
  • Tools
