DC33/TEN

SOLD

  • Reference ID 332
  • Builder DC33
  • Model TEN
  • Kees van de Stadt
  • Year 2009
  • Location Netherlands
  • L.O.A. (mtr) 9.89
  • Beam (mtr) 3.00
  • Draft (mtr) 2.068
  • Displacement (Kg) 2500
  • Material Composite
  • Engine Yanmar

Yacht description

First owner, well maintained epoxy built sport yacht with lifting keel. She mainly sailed on sweet water.

  • Torpedokeel retractable
  • Balance rudder
  • Tiller steering
  • Tack Tick instrumemts
  • One Sails Forte 2017
  • Last antifouling winter 2017

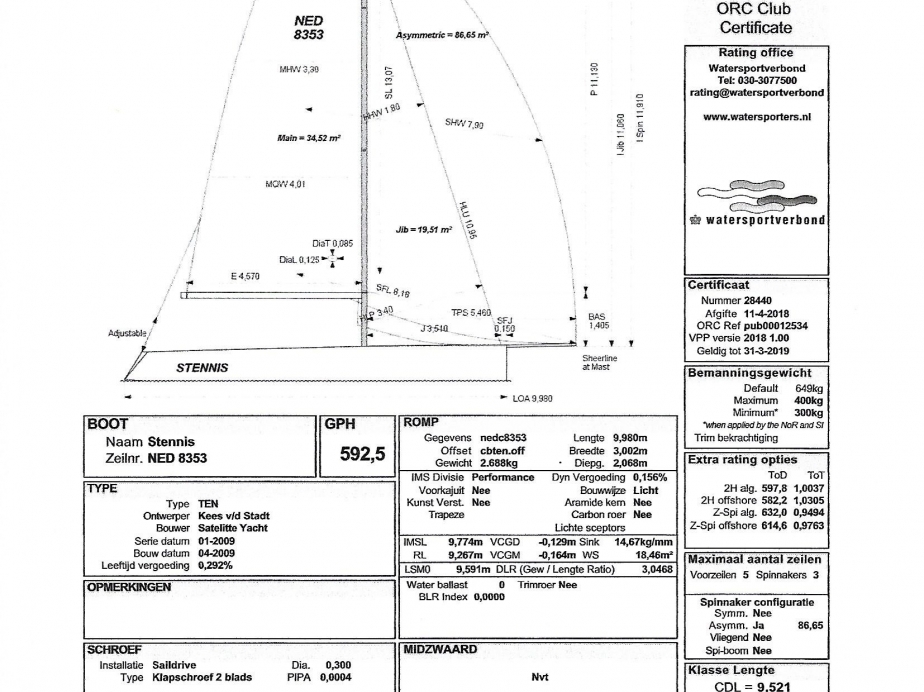

  • ORC GPH 592.5

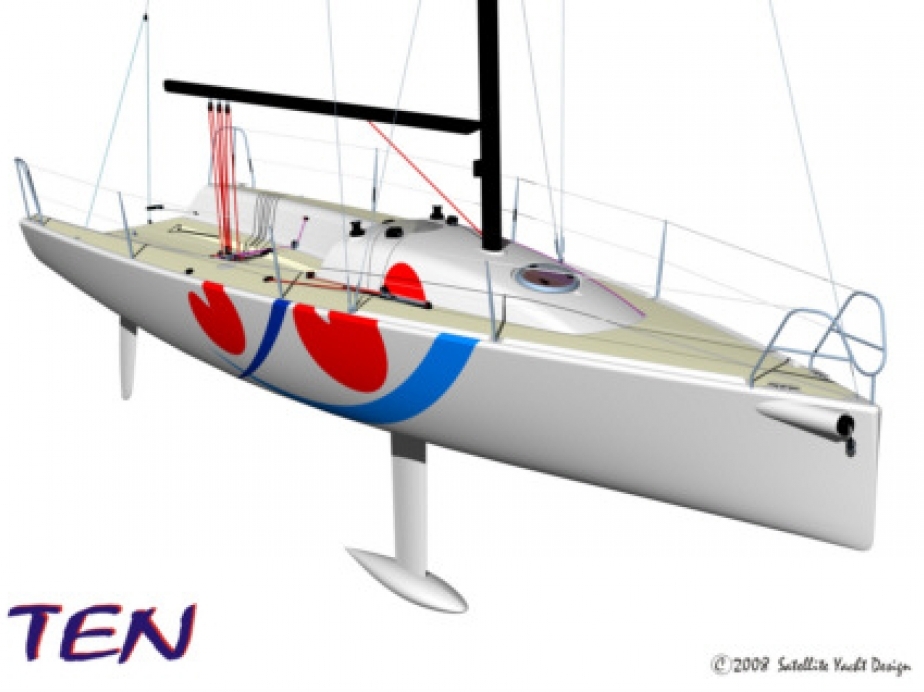

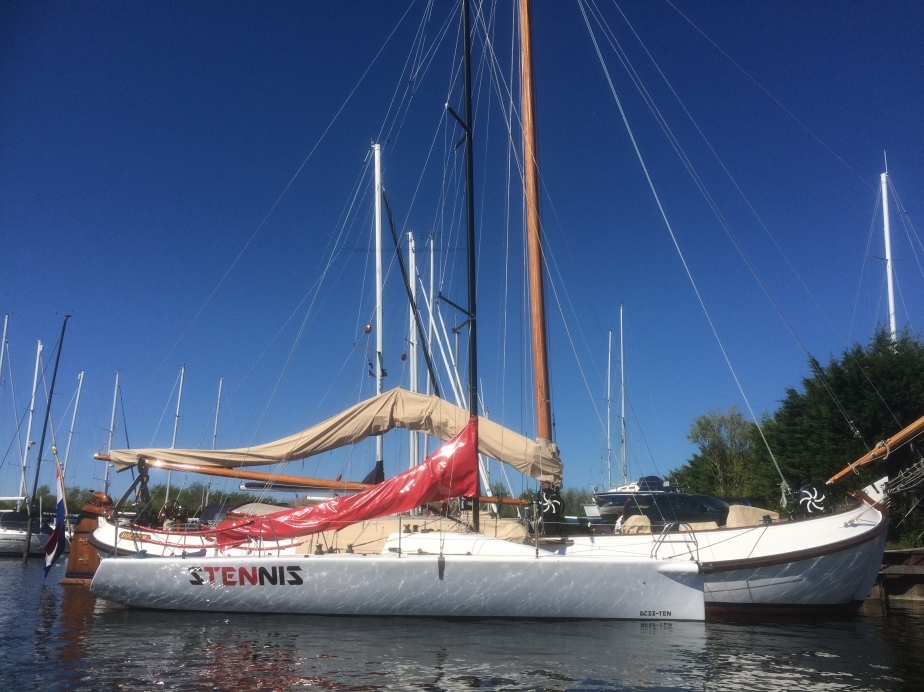

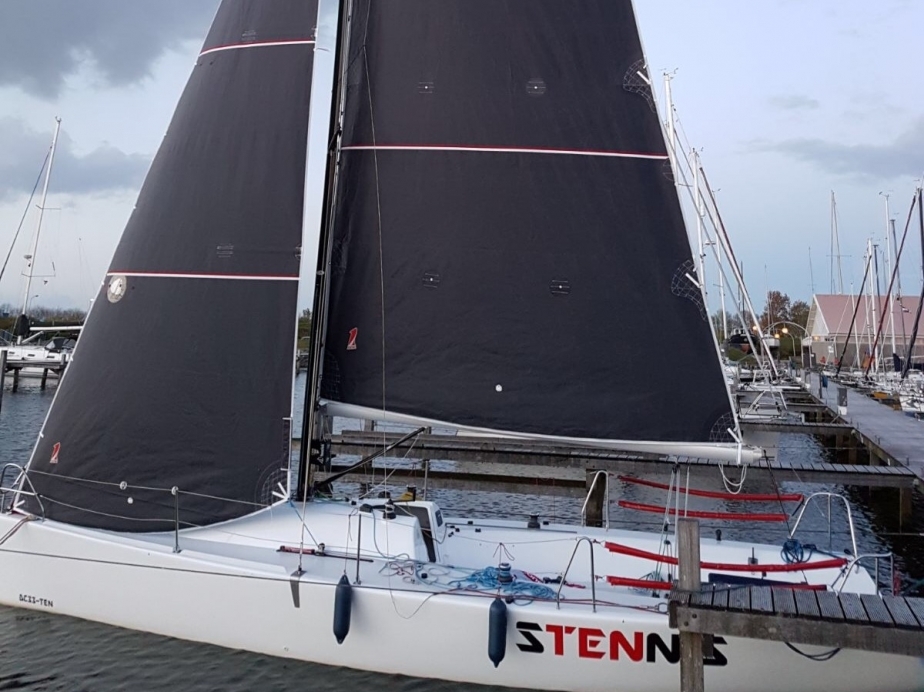

The TEN is a 10 meter sportboat, designed by Kees van de Stadt / Satellite Yacht Design. The lightweight hull has a sandwich construction of a glass epoxy laminate and a hightech foam core. By using a modern vacuum method in a mould, the entire construction process is controlled.


There is chosen to equip the TEN standard with a carbon mast to keep the weight and center of gravity as low as possible. The high stiffness of the mast, makes it easy to trim the rig.

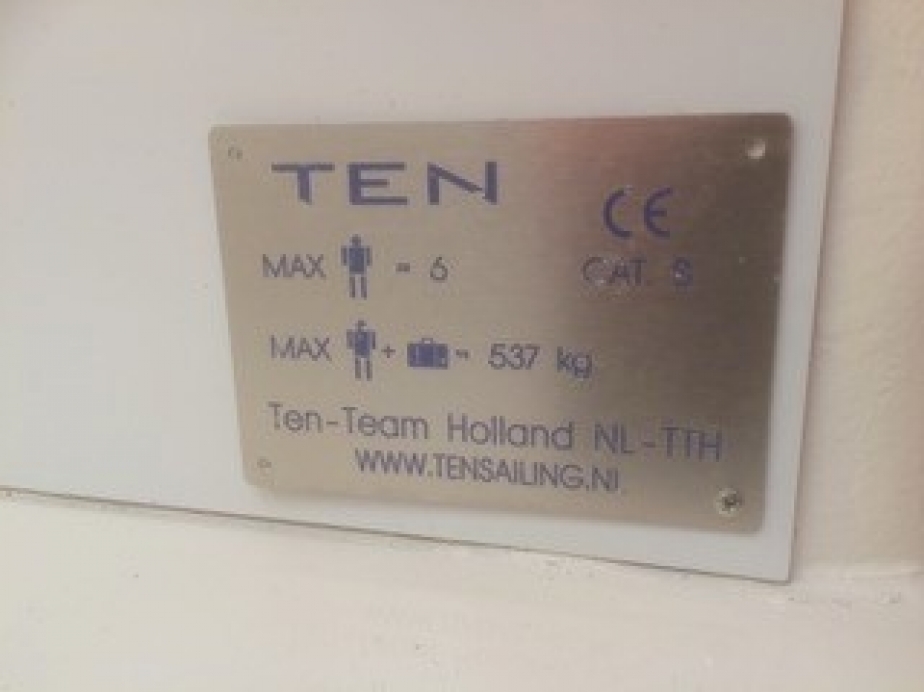

The keel with a draft of 2 meter consists of a composite fin and a lead bulb. For transport, it's possible to lift the keel. The lightweight hull and mast, in combination with the deep bulbkeel, gives the TEN a high stability with a low weight. The maximium crew weight according the class rules is 450 kg and that's equal to 5-7 persons.

The choice of high quality Harken deckequipment as well as the choice for the right places and ratios makes the TEN the excellent boat to race, where boatspeeds of 15-20 knots are no exception.

Owners comments:
The DC33 TEN is similar to a Melges 32, almost same decklayout and speed but 1 ft longer and cheaper.



General

Construction

  • epoxy / glass laminate
  • sandwich construction
  • white polyester gelcoat
  • gray striping
  • white antislip
  • composite keelfin / lead bulb
  • Hempel hard racing antifouling



Rigging

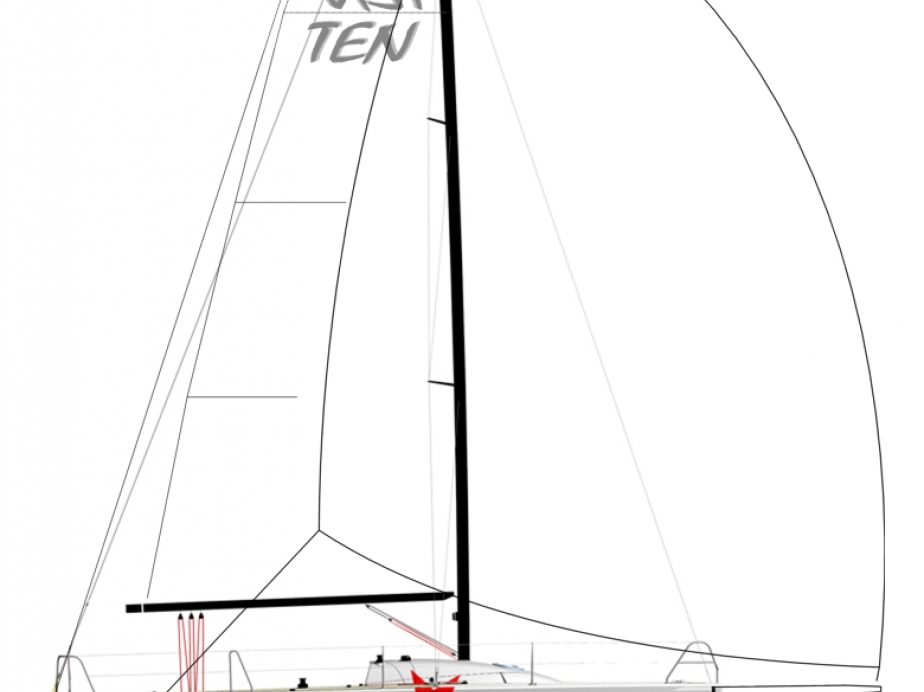

  • 7/8 rigged with fat head mainsail (One sails Forte T4 from 2017)

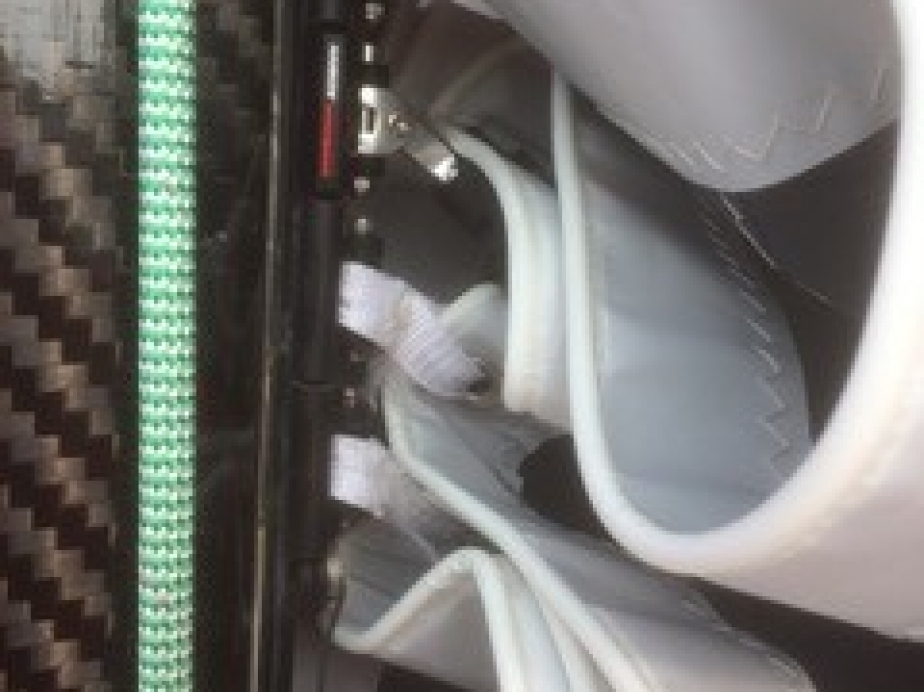

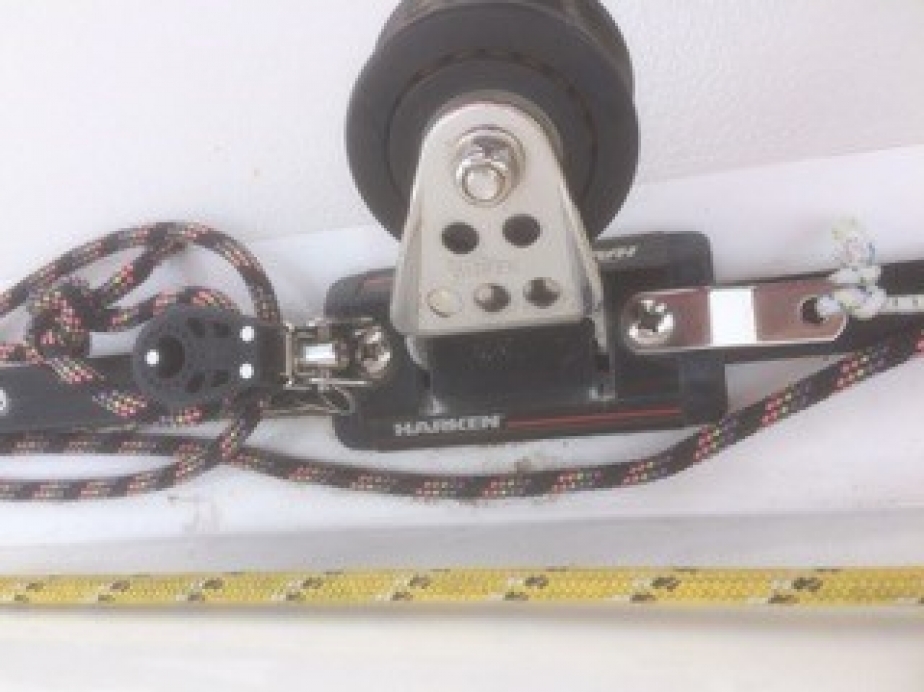

  • mast Carbon with rail and Harken cars for mainsail

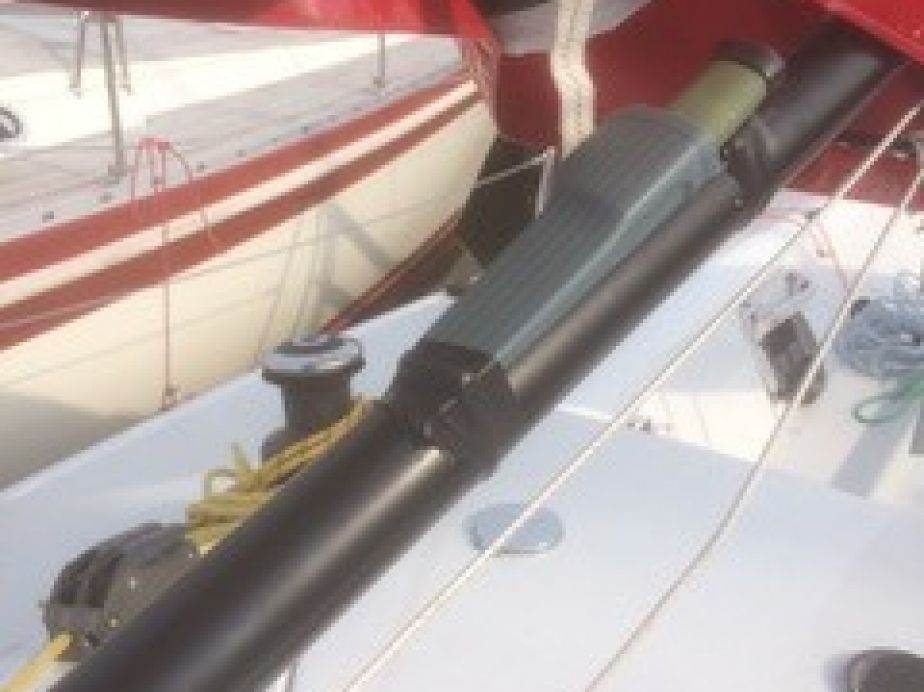

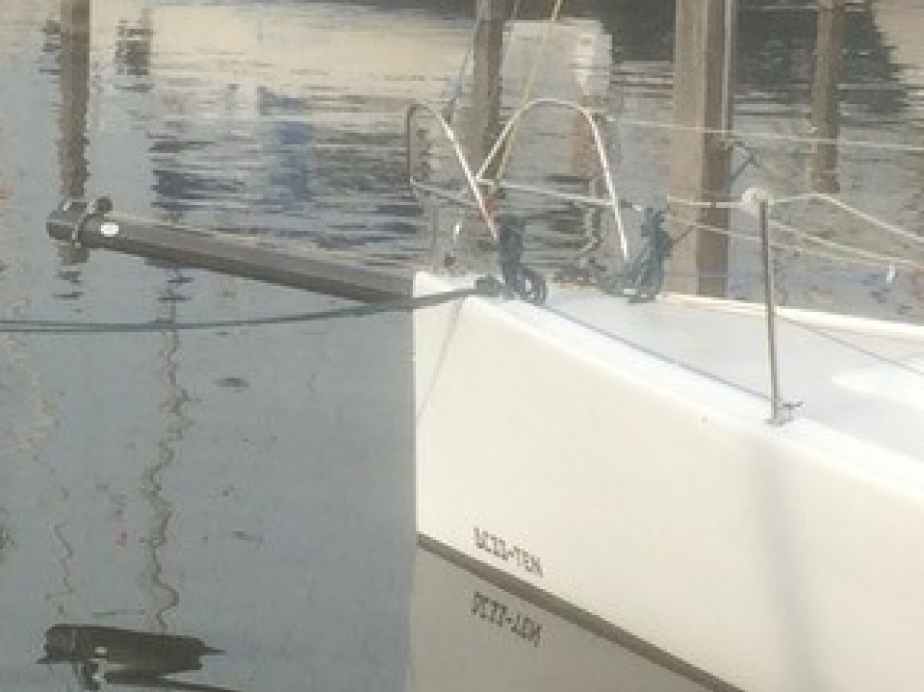

  • gennaker pole retractable Carbon
  • Selden aluminium boom
  • Dyform rigging
  • Halyards, sheets and trimming lines

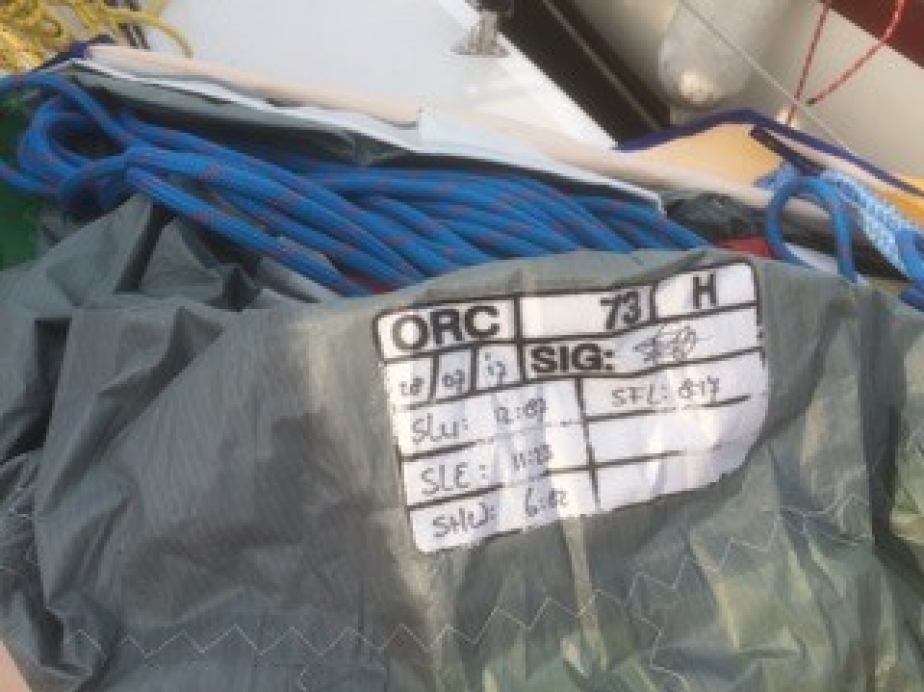

Sails

  • fat head mainsail (One sails Forte T4 from 2017)
  • 1 x small jib (little used)
  • 1 x large jib (One sails Forte T4 from 2017)

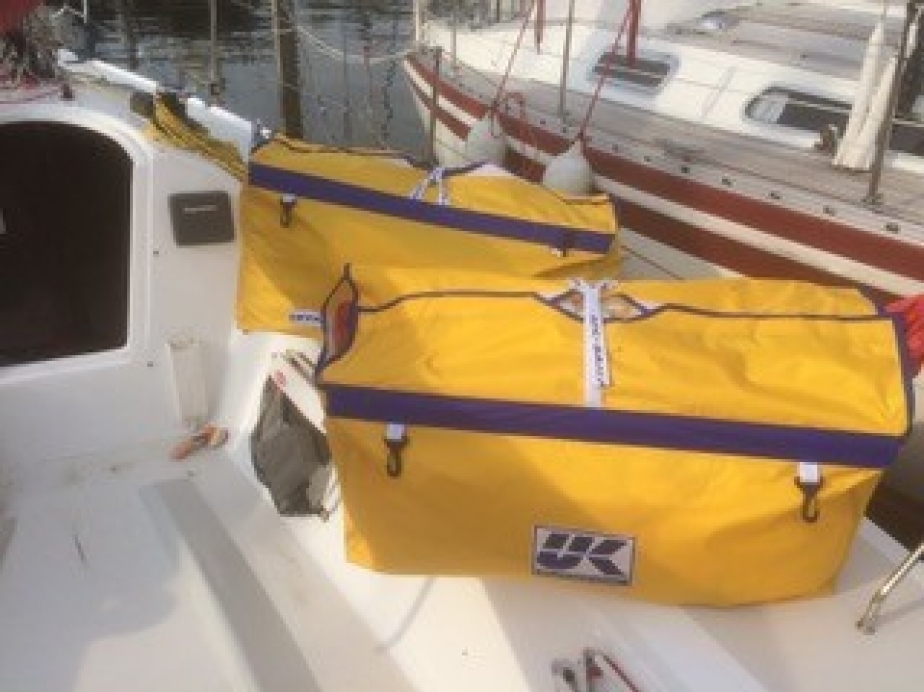

  • 1 x runner gennaker (UK sails from 2017)

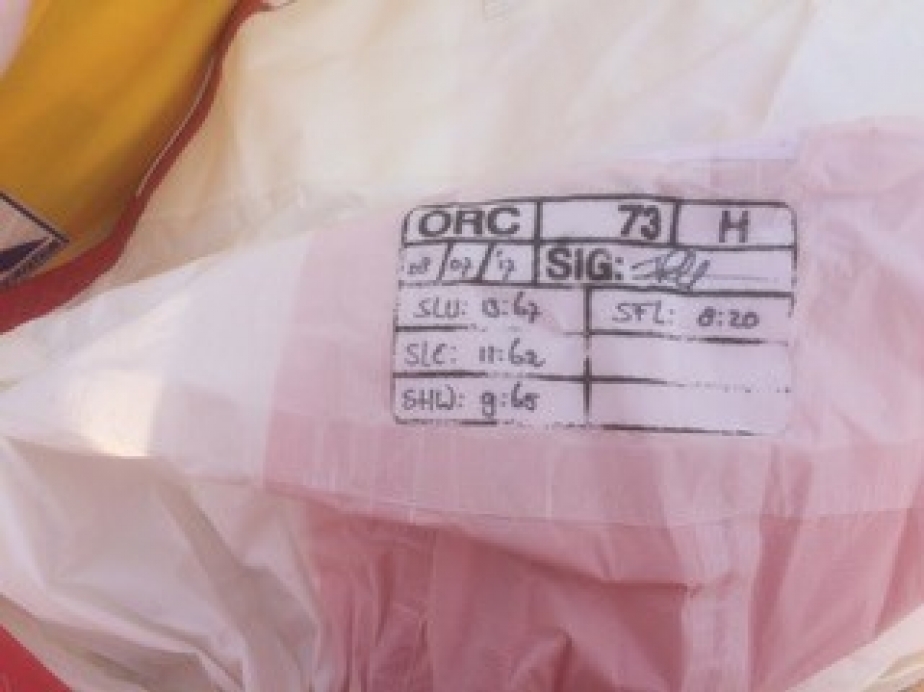

  • 1 x reacher gennaker (UK sails from 2017)
  • Mainsailcover 2017

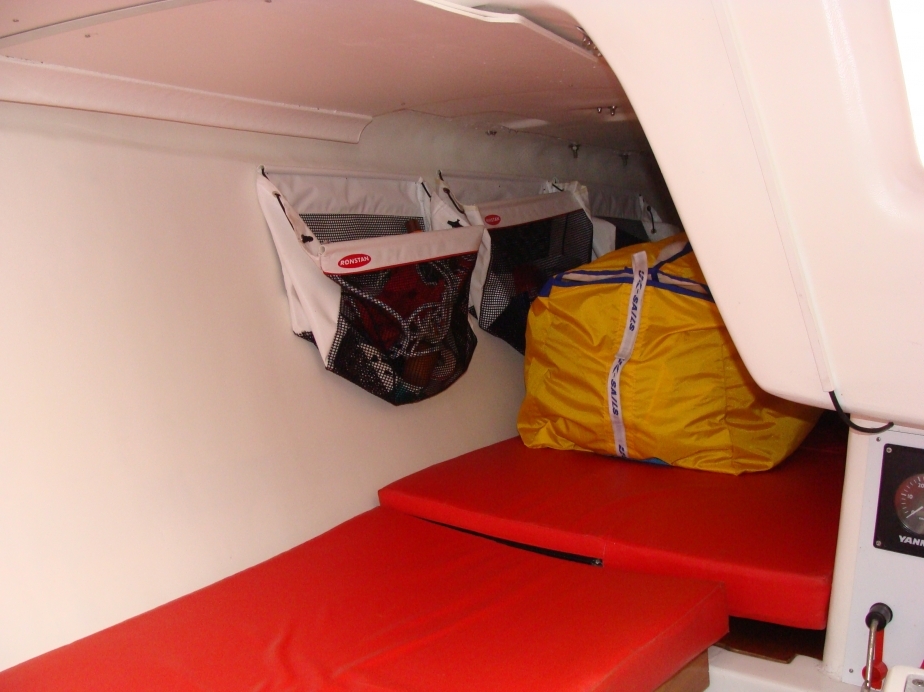

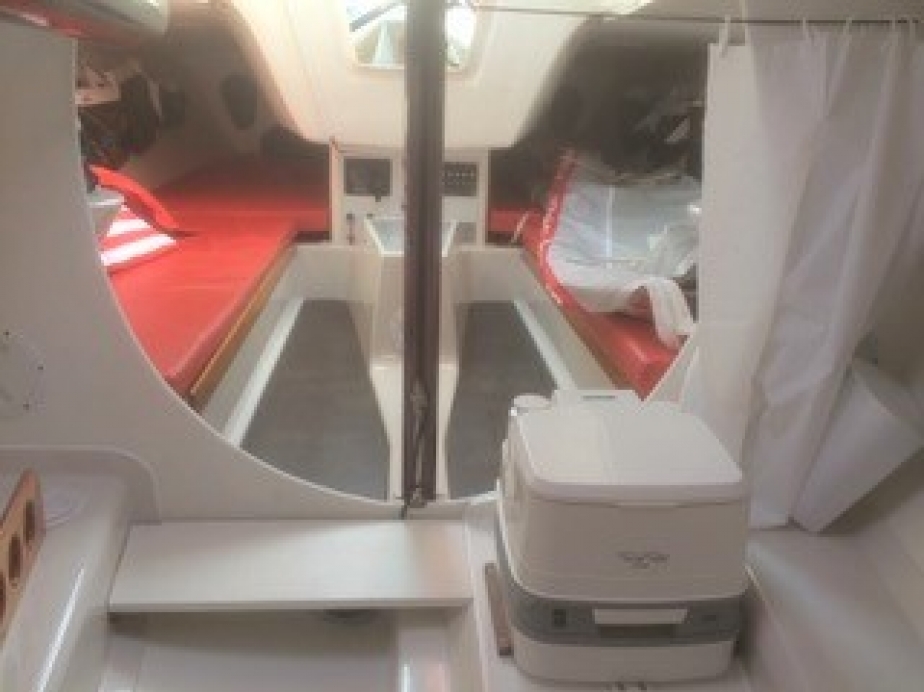

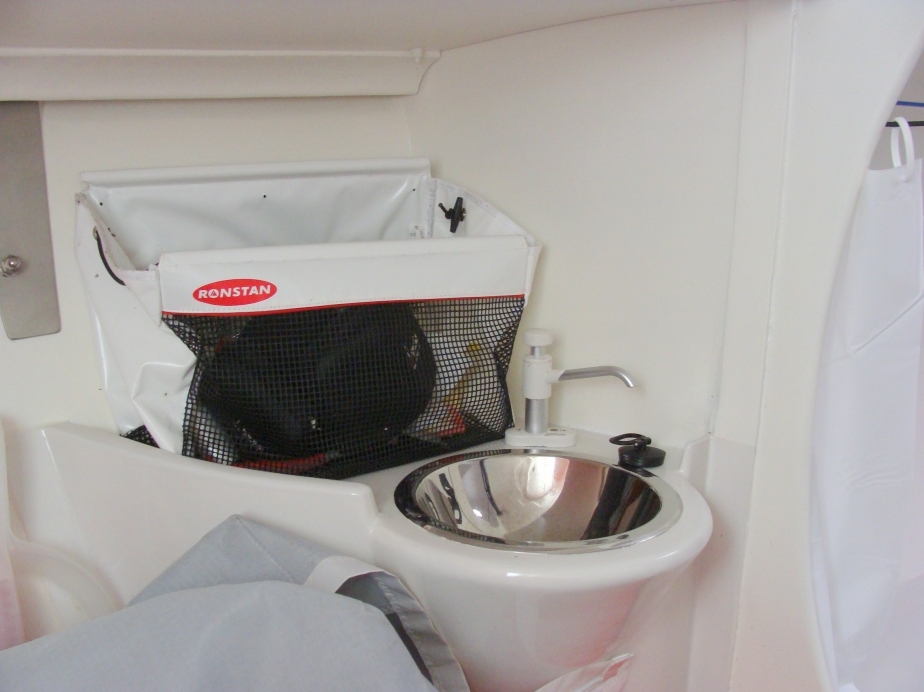

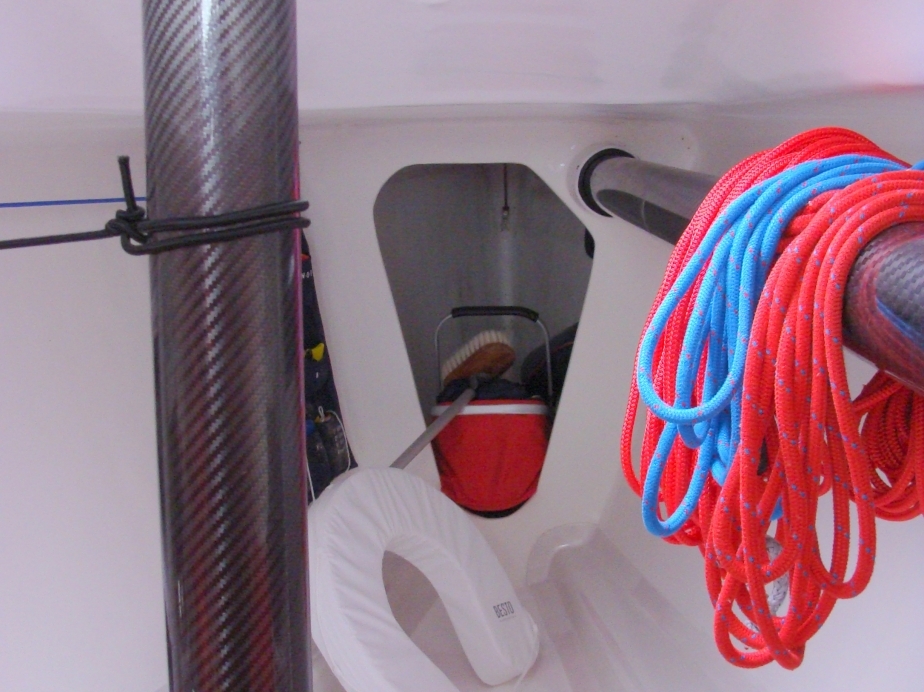

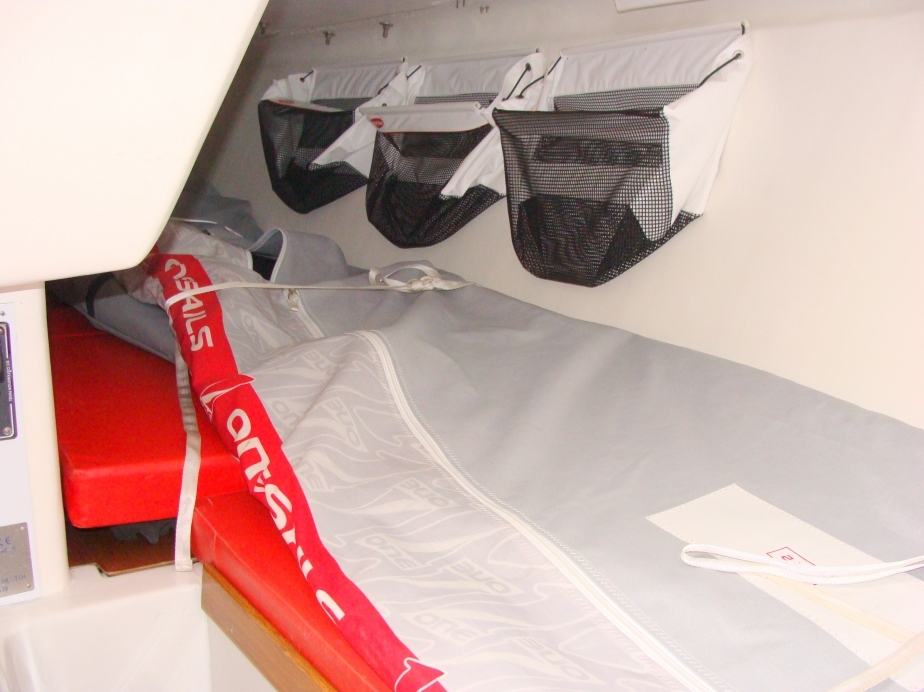

Accommodations

  • Sleeps 2

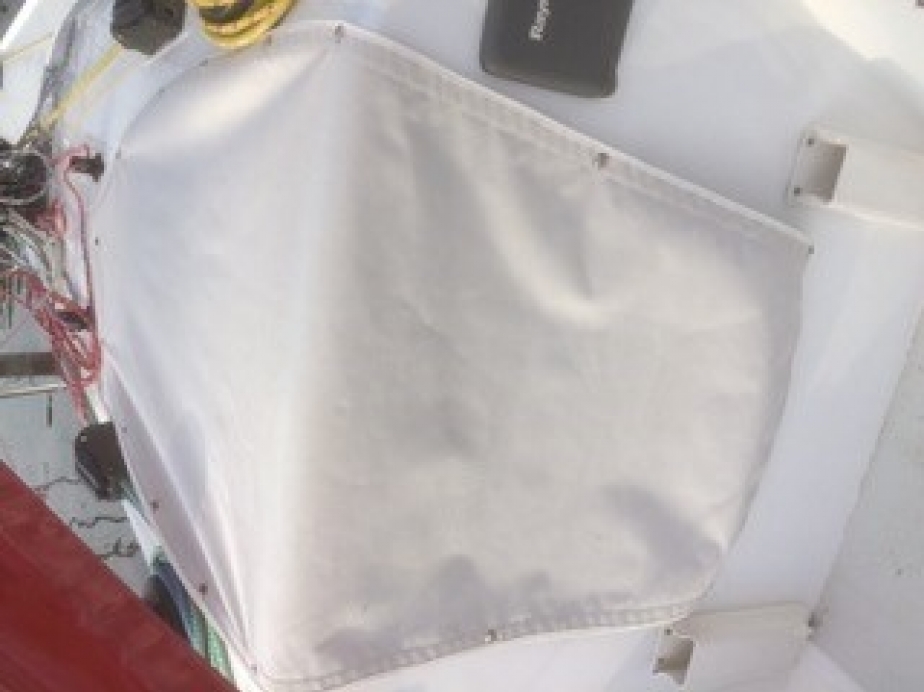

  • protective cover cabin door

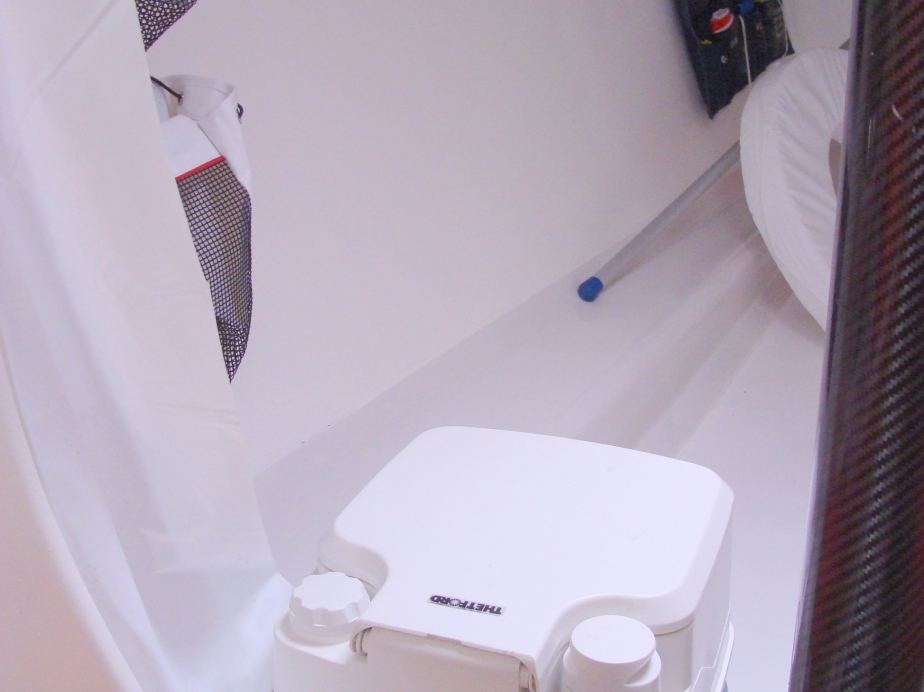

  • Chemical toilet
  • carbon floorboards (sandwich)
  • Led interior lights

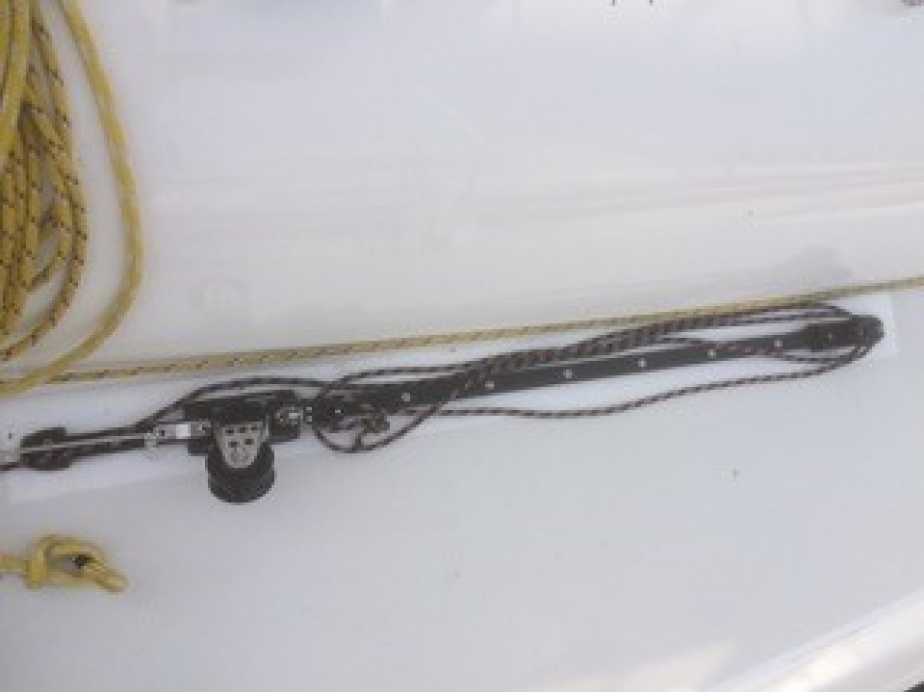

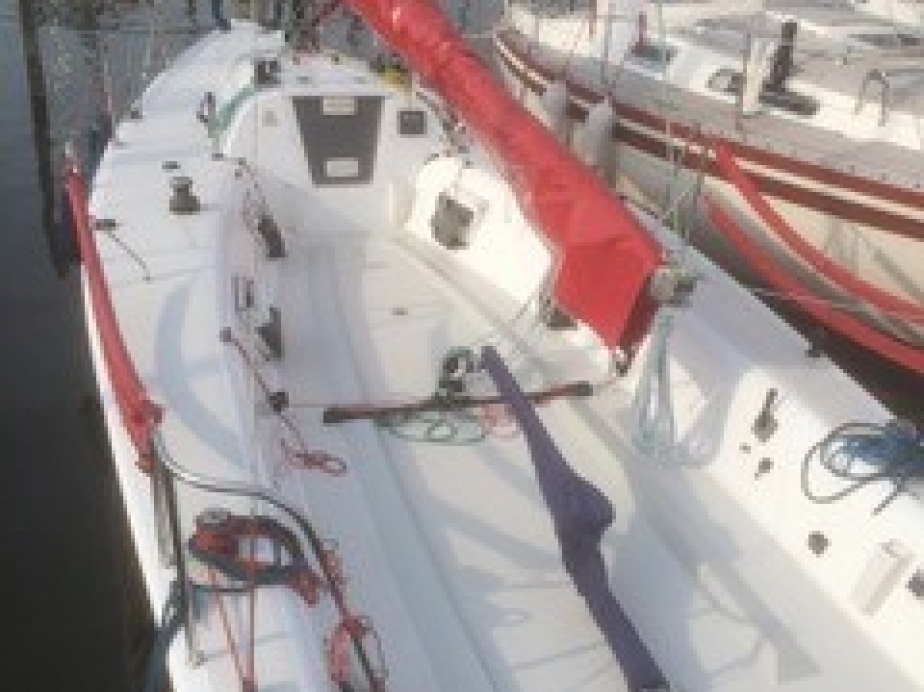

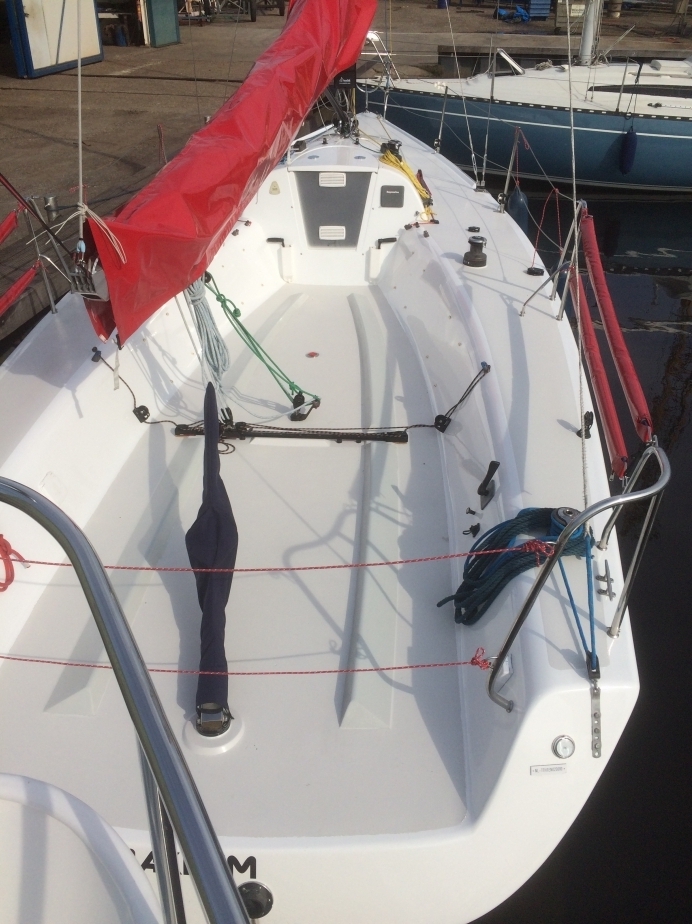

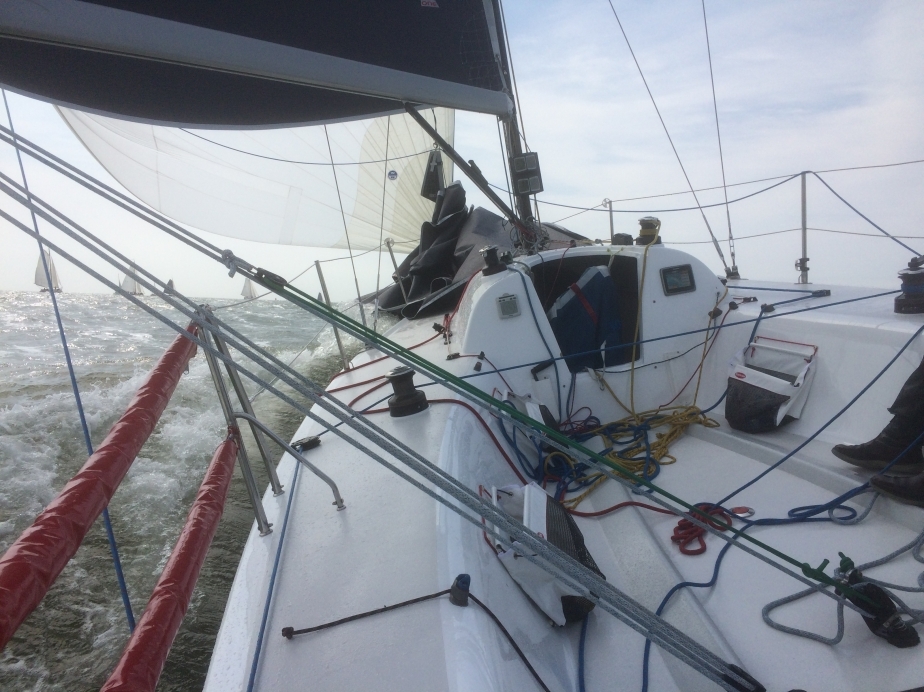

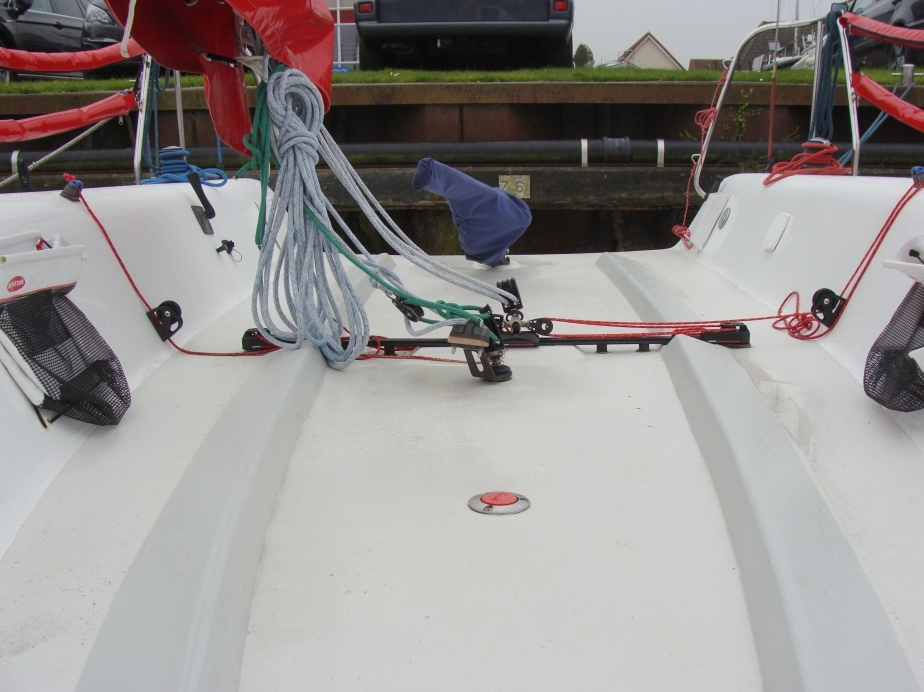

Deck and Cockpit

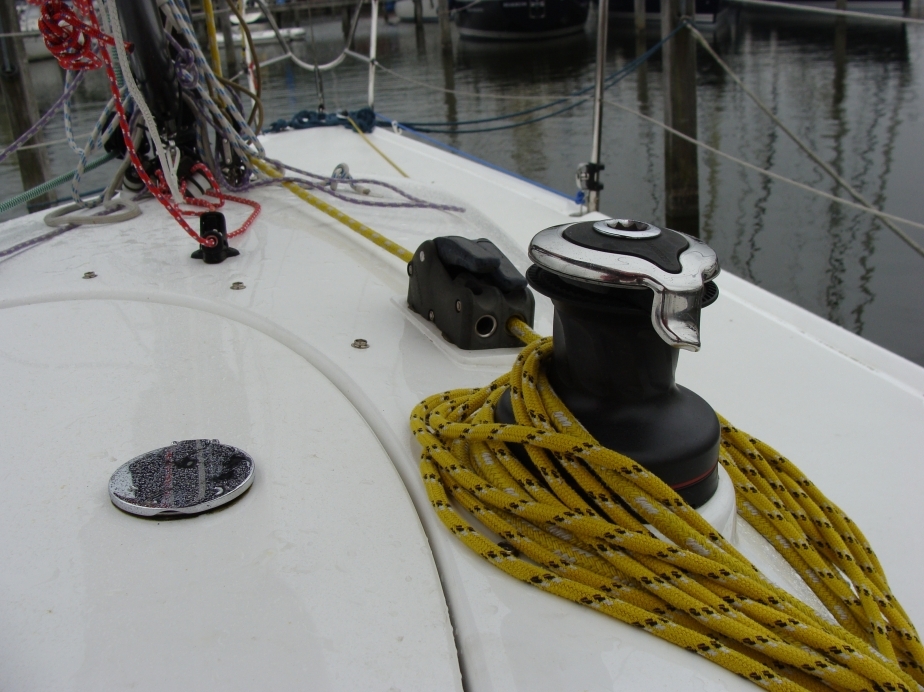

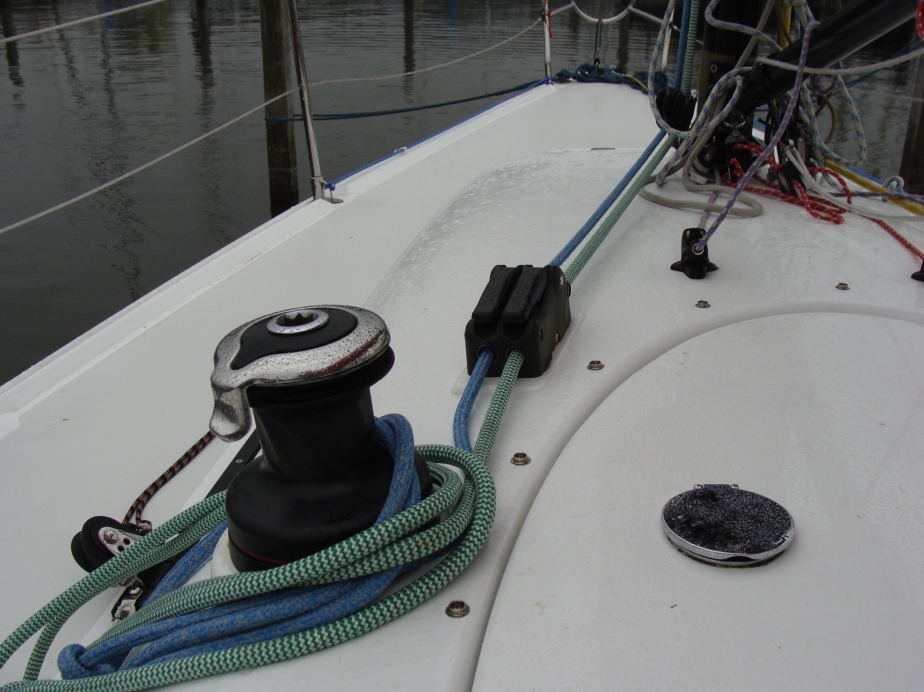

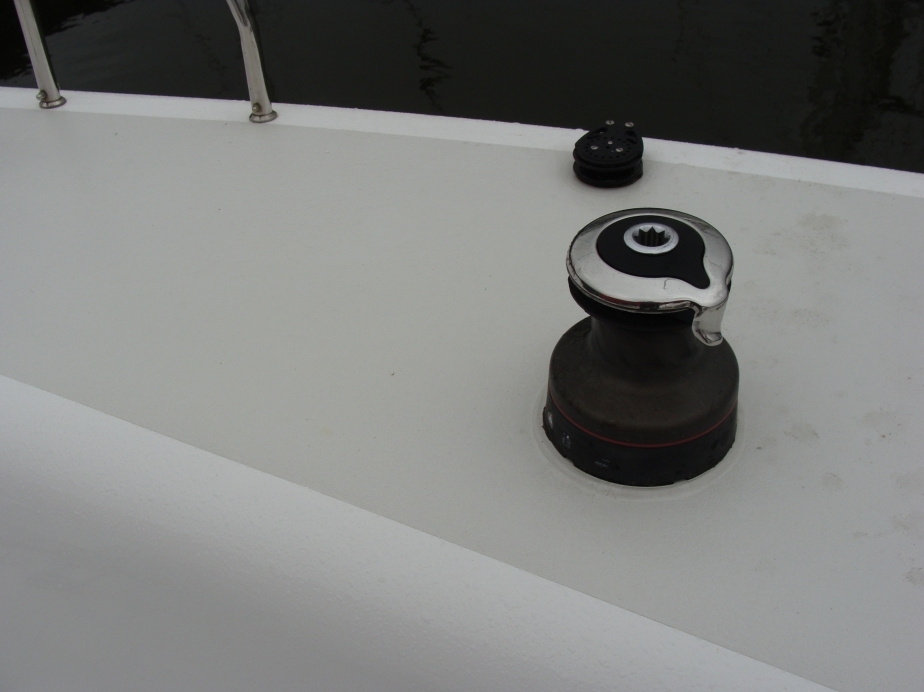

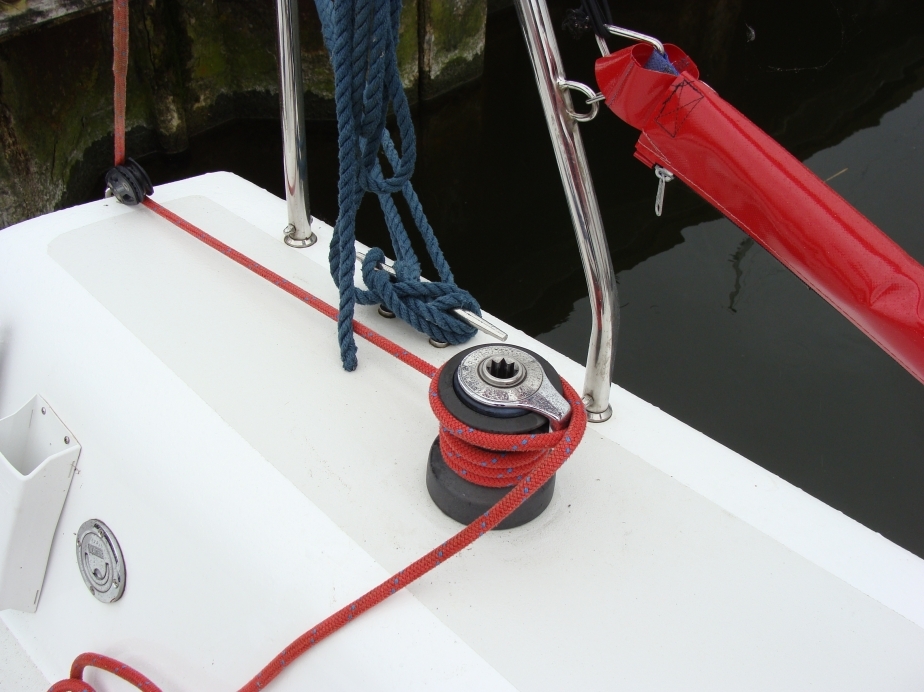

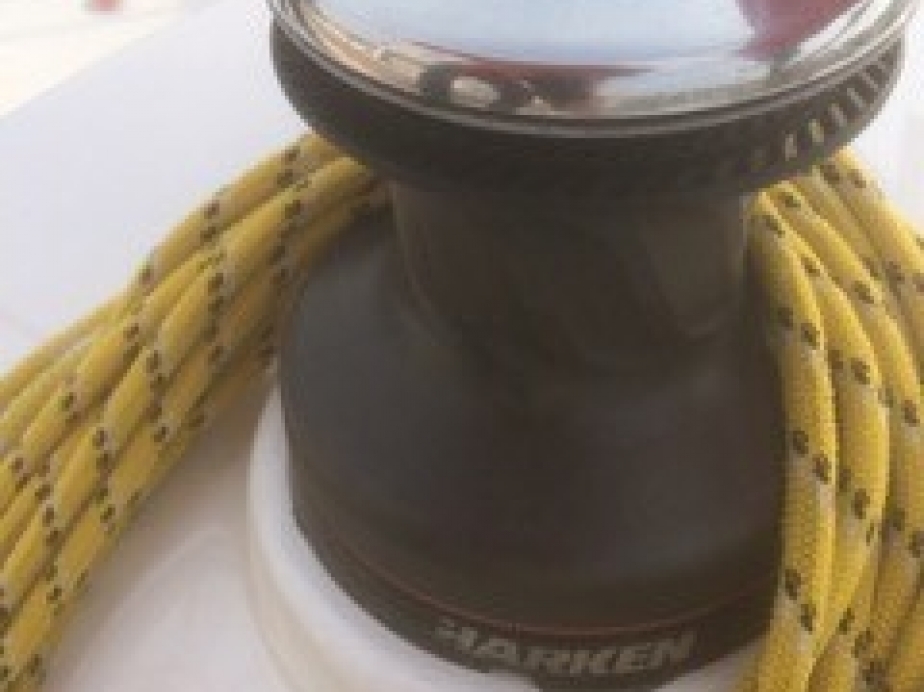

  • 6 winches Harken;  2x 16  2x 20  2x35

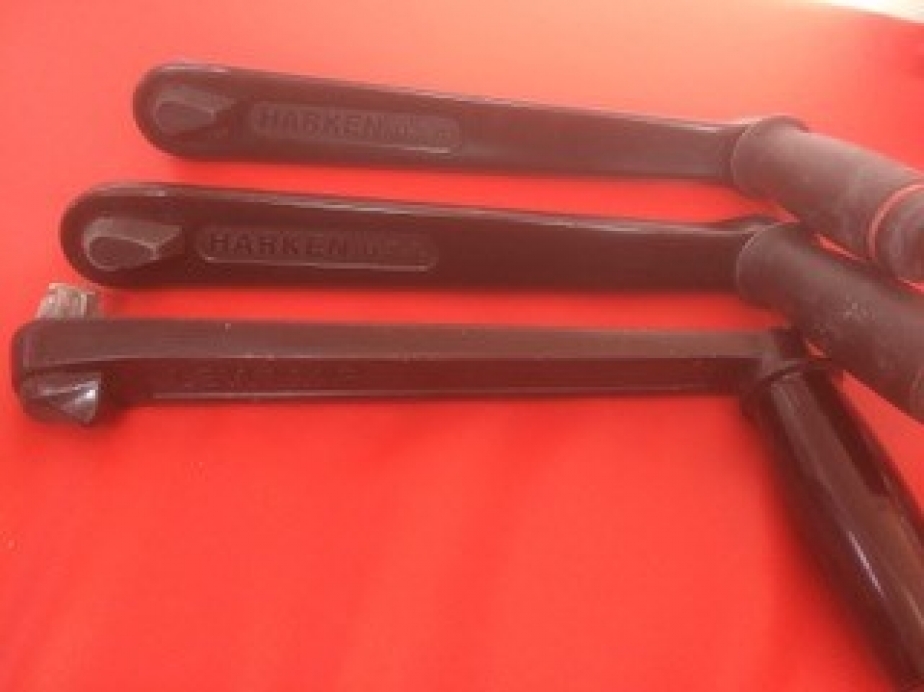

  • 3 x winch handles
  • 4 storage bags in cockpit
  • hiking protection

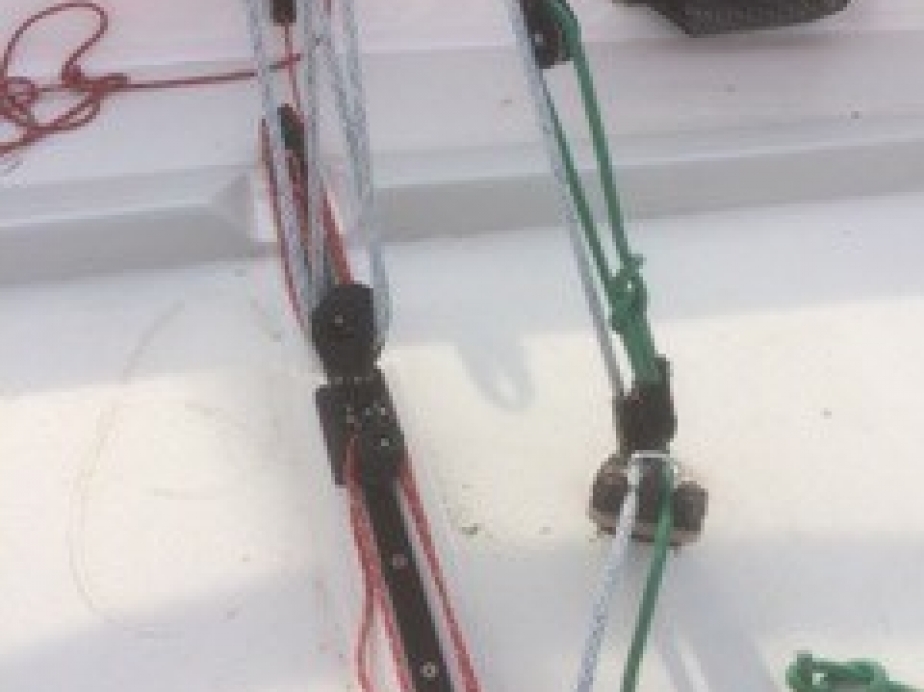

  • Spinlock Clutches
  • Lewmar hatch

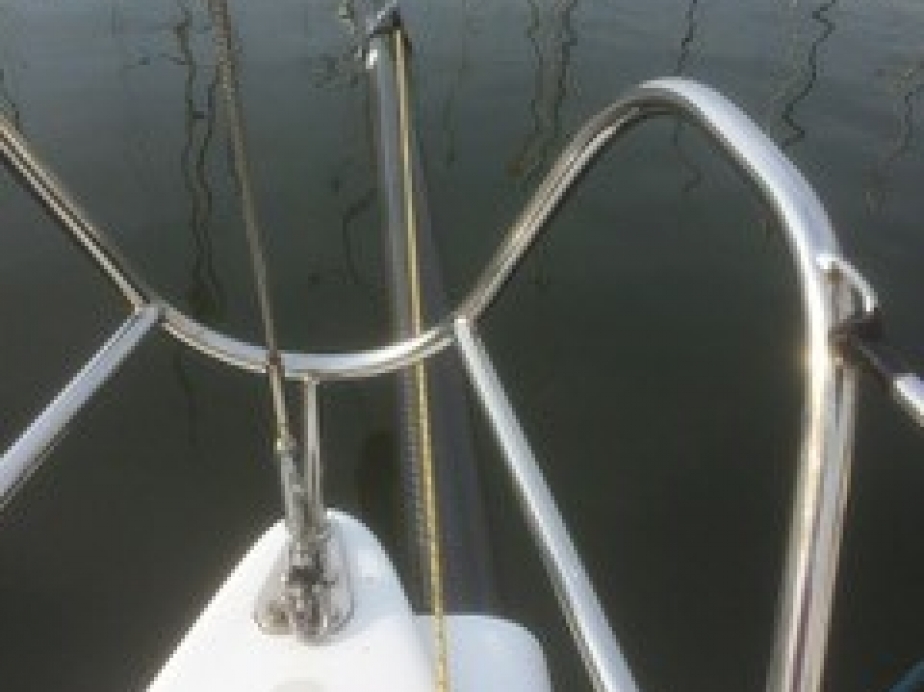

  • Stainless steel push- and pulpit; Stainless steel stanchions
  • Deckcleats

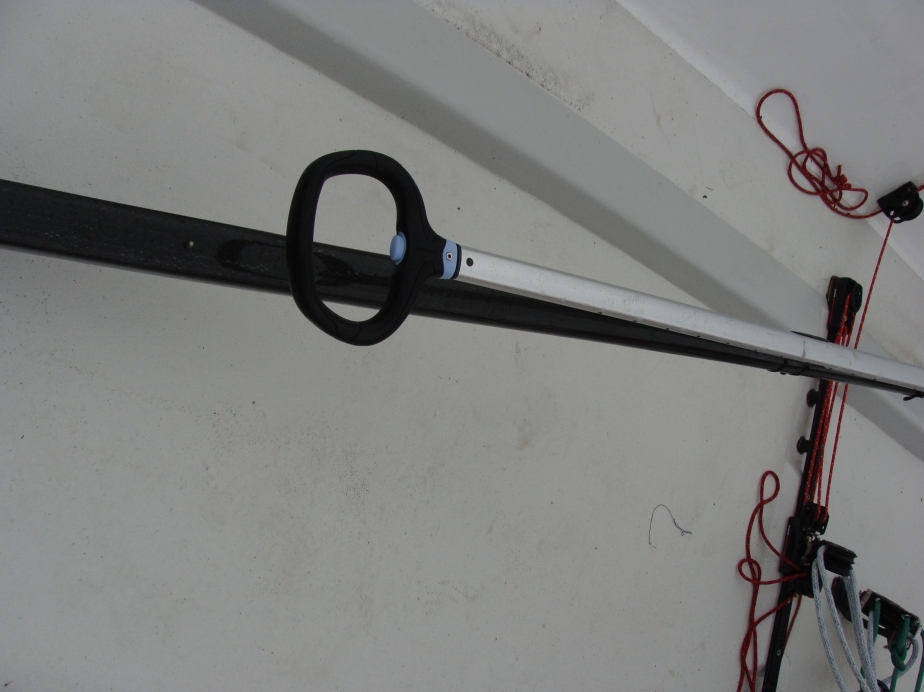

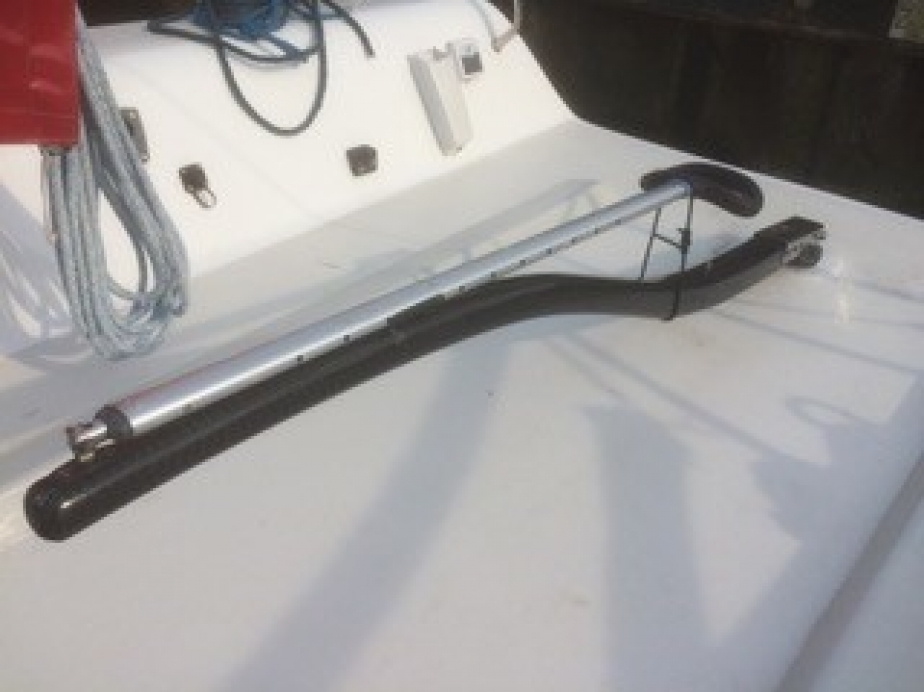

  • Spinlock tiller extensions, carbon tiller

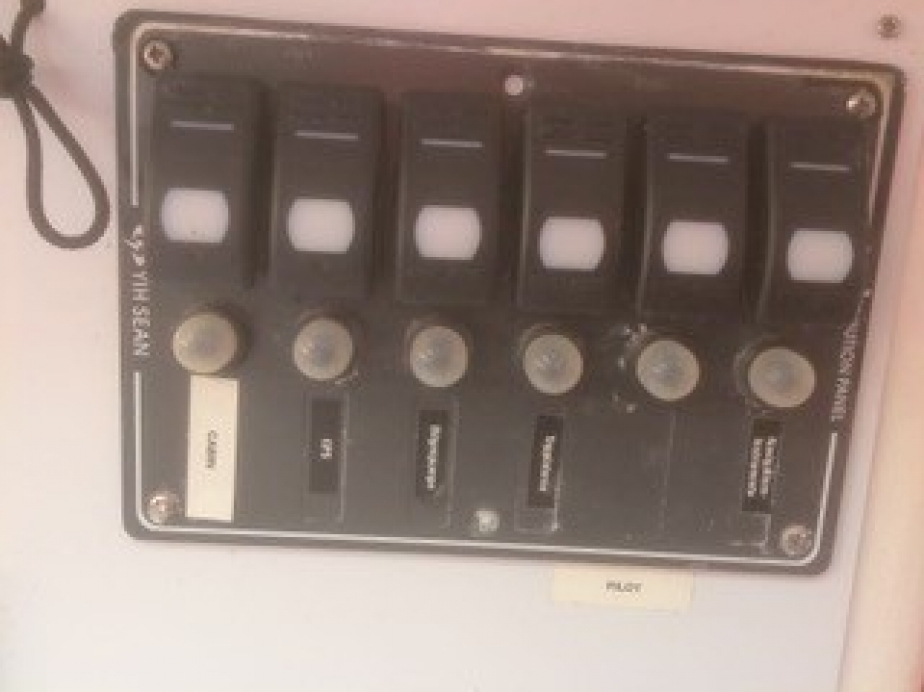

Electrics

  • 2 x 12 volt battery; Start battery and Service battery both Optima red top ±75 Amp
  • 2x electric bilge pump and manual operation
  • shore power connection with charger / inverter

Engine

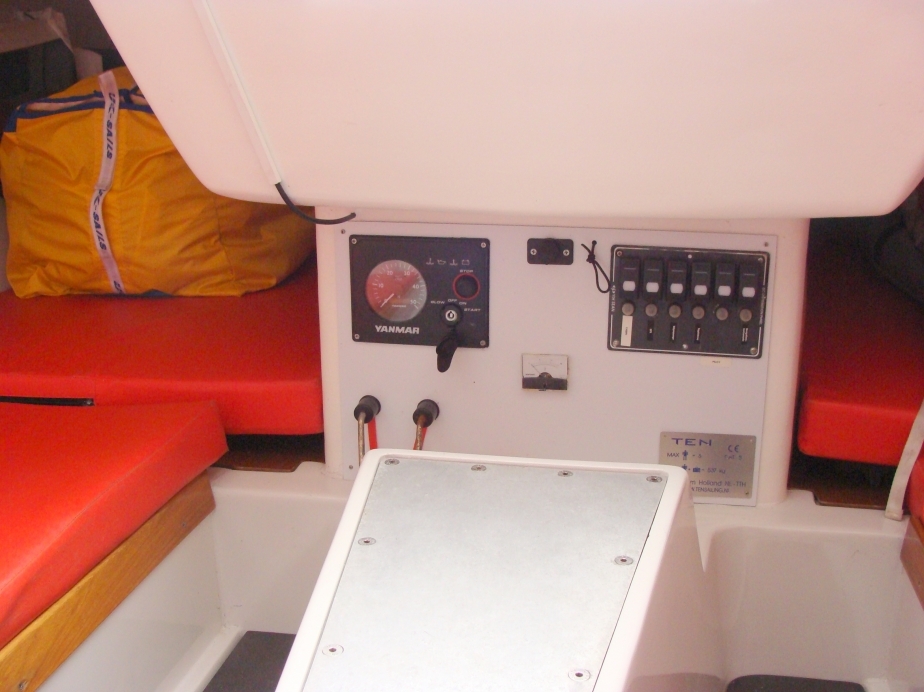

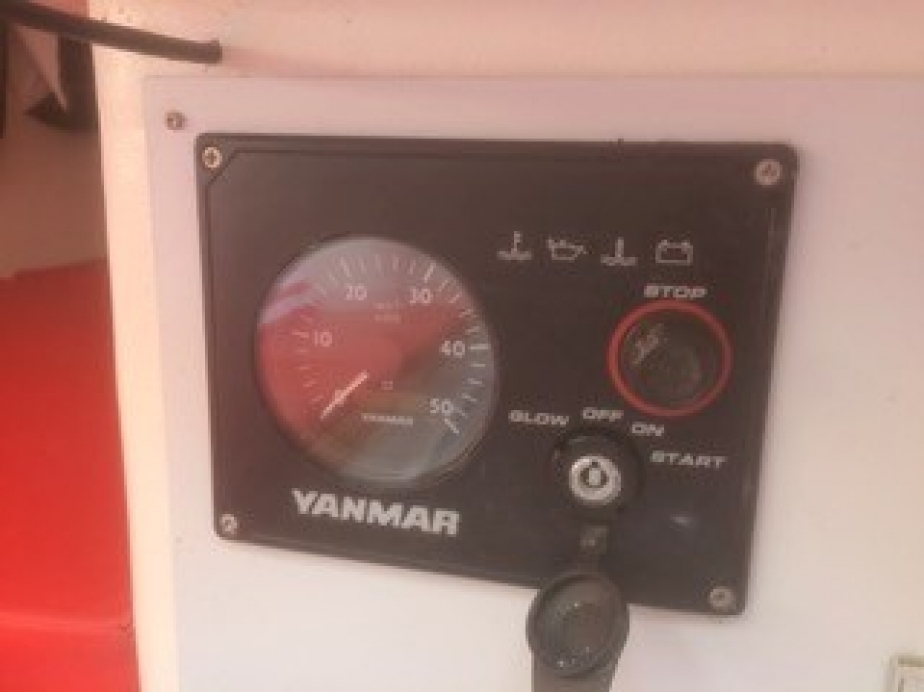

Yanmar 9hp saildrive with folding propeller
Year of construction 2010
Fuel tank 40 ltr.

Electronics and Navigational Gear

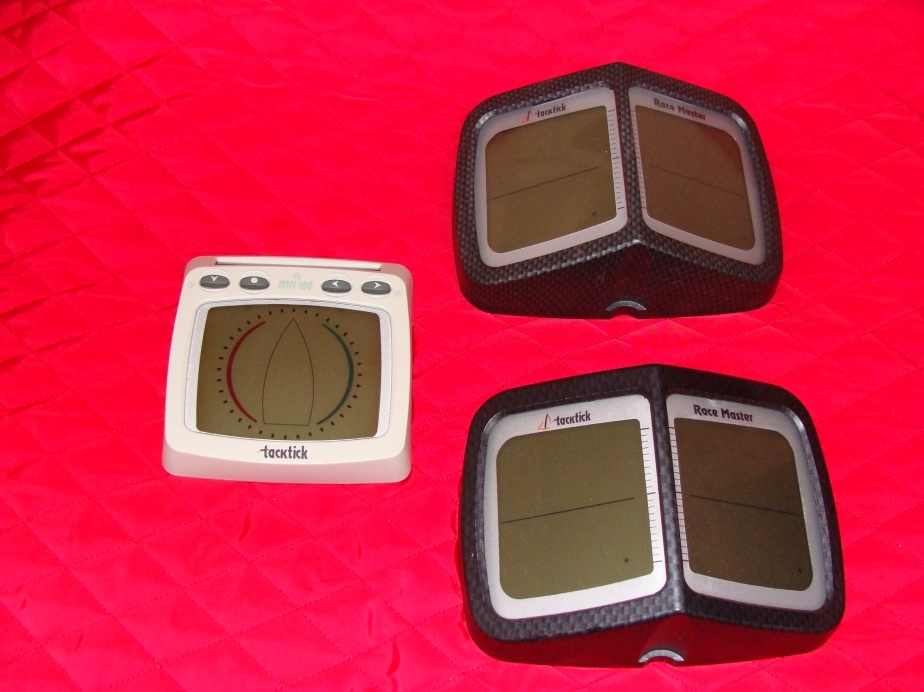

  • 3 Tacktick meters (mast and cockpit)

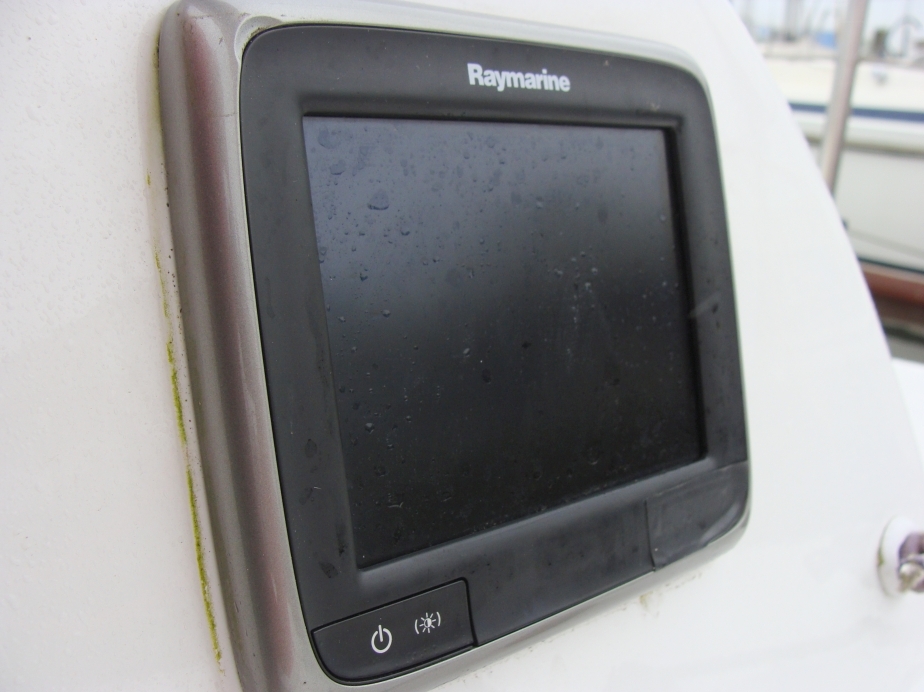

  • Raytheon plotter
  • Compass in Tacktick
  • Autopilot Autohelm ST1000+

Additional

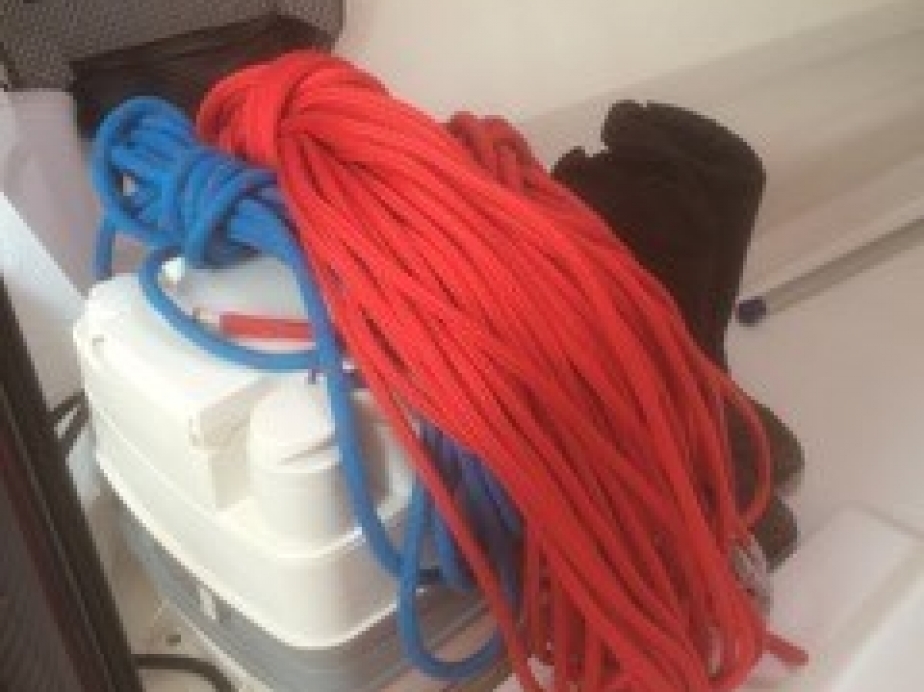

  • 4 mooring lines
  • 5 fenders
  • 2 blade anchor with anchor line
  • Fire extinguisher
