General

Dimensions:

LOA 8,52 m
LWL 8,37 m
Beam (racks in) 2,53 m
Beam (racks out) 3,90 m
Displacement 1100 kg
Draft (shallow) 1,67 m
Draft (deep) 1,92 m

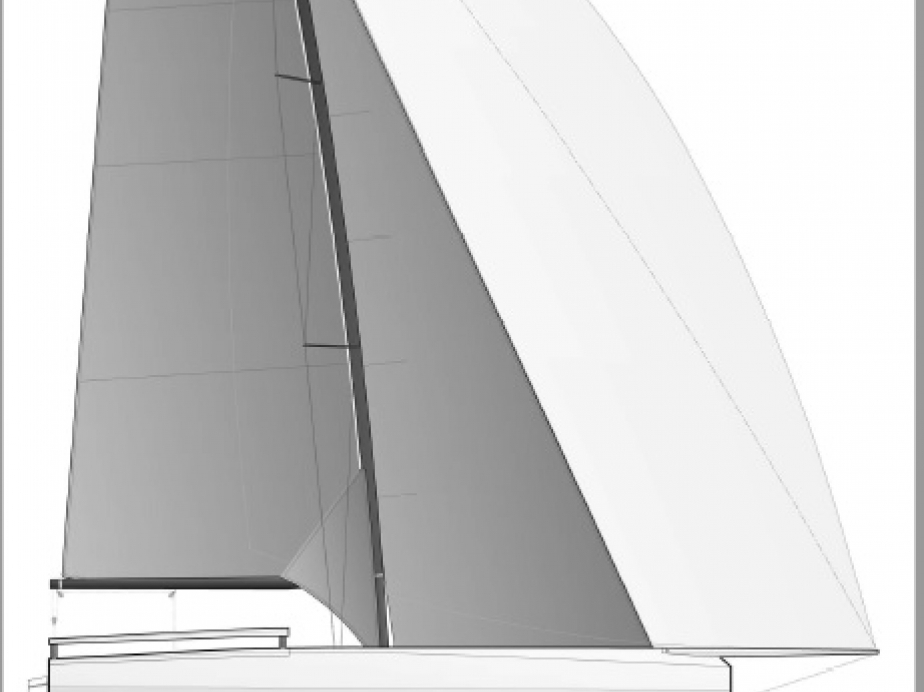

Sailarea

I 10,72
J 3,40
P 10,46
E 3,89
LP 3,51
STL 6,10
Main 27,00 sqm
Jib 19,46 sqm
Spinnaker 84,00 sqm

Rigging

The simple no-backstay rig is adjusted with underdeck forestay and jib tack purchases, relying on the pin-adjustable shrouds to make rig setup easy and repeatable.

• Axxon mast, 2 sets of spreaders, deck-stepped incl. rod rigging, main lock by Axxon, jib lock by AlphaLock
• Carbon boom by Axxon gas vang, outhaul, cunningham with Cam-Matic, dynemaa forestay,jib cunningham
• Fix carbon composite bowsprit with bobstay (removable for transport), painted with Alexseal
• Gottifredi Maffioli running rigs

Deck and Cockpit

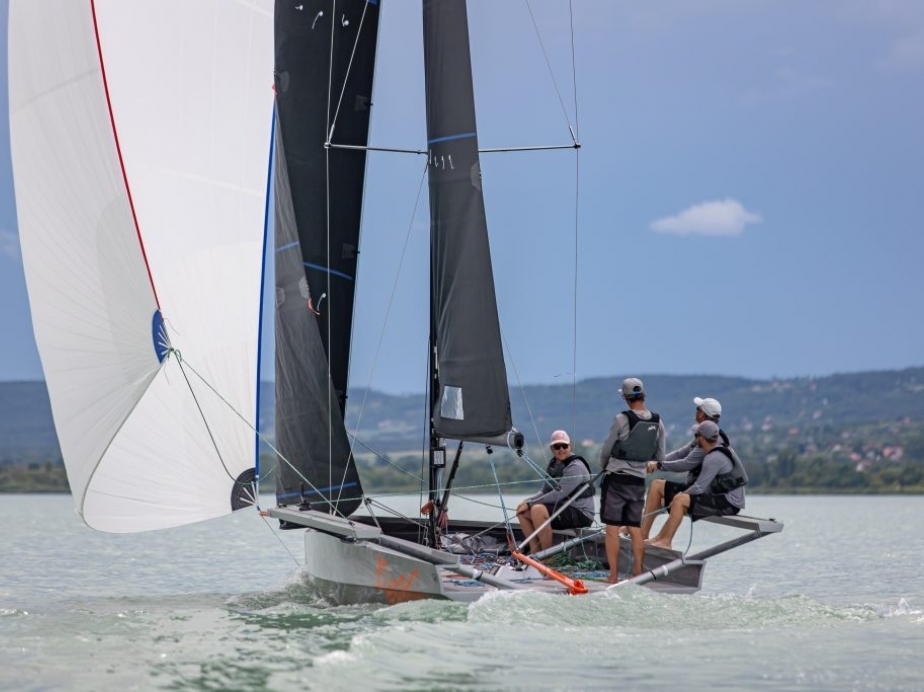

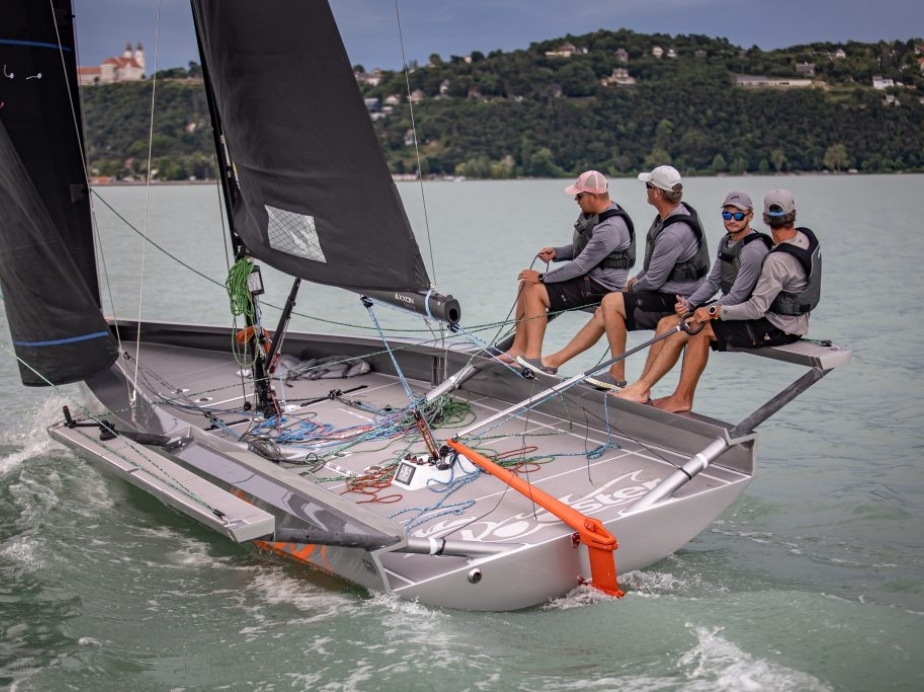

The all-carbon sportsboat features extendable racks that allow the crew to produce far more righting moment than a conventional hiking position, as well as a more comfortable seating position. In daysailing mode with the racks in it becomes a simple sporty daysailer, with the flat cockpit floor running forward to the stem to produce a more secure foredeck.

The sliding racks are very successful, providing a more comfortable seating position than a conventional cockpit with a very solid feel even with 5 full size crew, leading to the description ‘Gentleman’s Skiff’.  The racks have sockets for carbon stanchions to carry a webbing strap for more comfort when extended or better enclosure when sailing with them retracted.  The appendages are all carbon, with a weed knife in the keel and a lifting rudder blade allowing easy weed-clearance in the Caribbean.

Three hatches on the floor offer access under the cockpit, revealing a Lombardini 10hp inboard and storage space.

• Spinlock alloy extension
• Carbon stanchions on the racks
• 3 carbon hatches, with carbon piano hinges
• SeaDeck non-skid in different colors

COCKPIT

• 1:24 forestay and jib cunningham purchase system under deck with Harken Black Magic blocks, cleats and double protexit
• 2pcs Spinlock XTR stopper for tackline, genakker halyard
• 1:2 / 1:8 main sheet system, all blocks from Harken
• 3D jib track system all block from Harken
• 2pcs Snubair, blocks and cleats for genakker sheeting system, all from Harken

Electrics

• LED navigation lights
• Windex
• 12 V electric system with main panel
• 80aH battery system, more is optional
• optional battery charger upon request



Engine

• standard outboard bracket with Yamaha F5AMHL 5LE (4-6HP recommeneded)
• optional inboard propulsion system (10HP recommeneded) is both electric and diesel available

Additional

Fits into a 40' container - container with service kits is available as extra
